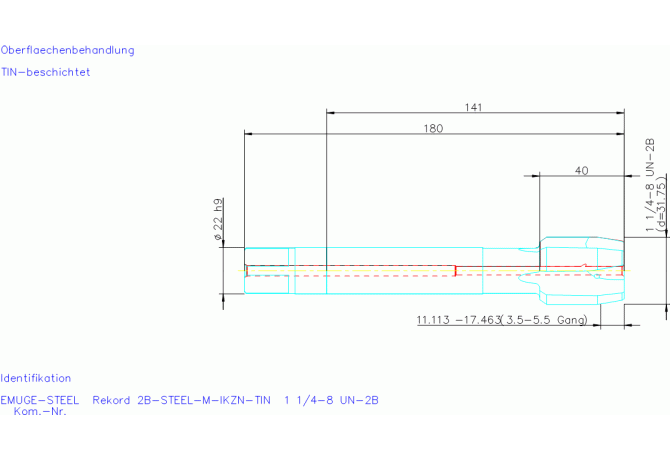

Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank C1081400.5249

C1081400.5249

Артикул: C1081400.5249

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TIN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

2 - With Coolant exit, radial

DIN

ZYL02202115

DRVS Drive size

18 mm

FamilyProducts

MGB-Rek.2B-STEEL-M-IKZN-TIN

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02202115

Name Identifying order number

C1081400.5249

OAL Overall length

180 mm

PLG Plug style

B - Kappa r 8°

STDNO Standard

DIN 2184-1

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

TD Thread diameter

31.75 mm

TDFR Thread diameter nominal fraction

1 1/4 in

TDIN Thread diameter nominal inch

1.25 in

THFT Thread form type

TP Thread pitch

3.175 mm

TPI Threads per inch

8 1/in

Working process

No working processes available

WT Weight of item

0.527 kg
