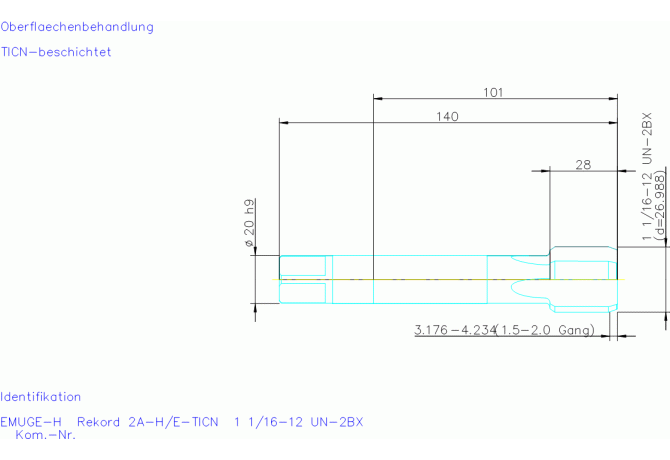

Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank C0119101.5202

C0119101.5202

Артикул: C0119101.5202

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TICN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DIN

ZYL02002105

DRVS Drive size

16 mm

FamilyProducts

MGB-Rek.2A-H/E-TICN

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02002105

Name Identifying order number

C0119101.5202

OAL Overall length

140 mm

PLG Plug style

E - Kappa r 23°

STDNO Standard

DIN 2184-1

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

2BX

TD Thread diameter

26.988 mm

TDFR Thread diameter nominal fraction

1 1/16 in

TDIN Thread diameter nominal inch

1.0625 in

THFT Thread form type

TP Thread pitch

2.117 mm

TPI Threads per inch

12 1/in

Working process

No working processes available

WT Weight of item

0.325 kg
