Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank AU201700.0112

AU201700.0112

Артикул: AU201700.0112

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

CRN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DIN

ZYL03672125

DRVS Drive size

6.99 mm

FamilyProducts

MGB-US-Rek.B-STEEL-M-CRN

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0367

LOC-03 DCONMS Diameter

9.322 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03672125

Name Identifying order number

AU201700.0112

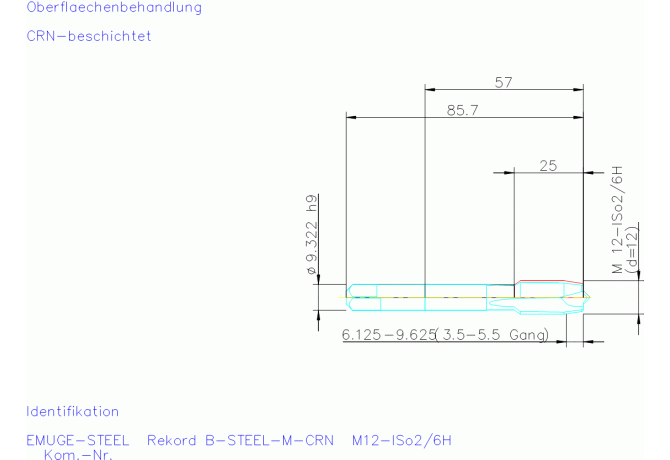

OAL Overall length

85.7 mm

PLG Plug style

B - Kappa r 8°

STDNO Standard

ASME B94.9

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

ISO 2/6H

TD Thread diameter

12 mm

THFT Thread form type

THOD Thread designation

M12x1.75-ISO 2/6H

TP Thread pitch

1.75 mm

Working process

No working processes available

WT Weight of item

0.042 kg
