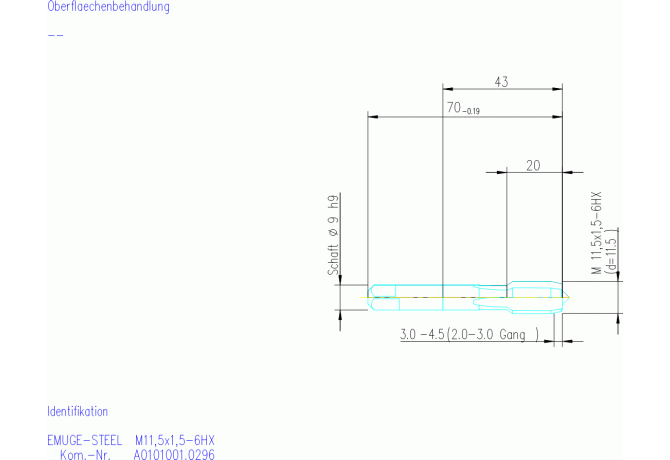

Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank A0101001.0296

A0101001.0296

Артикул: A0101001.0296

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

ohne

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

Delivery state valid from

10/1/2022

DIN

ZYL00902105

DRVS Drive size

7 mm

FamilyProducts

M/C Tap

FHH Flute helix hand

N - Hand of helix neutral

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0090

LOC-03 DCONMS Diameter

9 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00902105

Name Identifying order number

A0101001.0296

OAL Overall length

70 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN 2184-2

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

6HX

TD Thread diameter

11.5 mm

THFT Thread form type

THOD Thread designation

M11.5x1.5-6HX

TP Thread pitch

1.5 mm

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.031 kg
