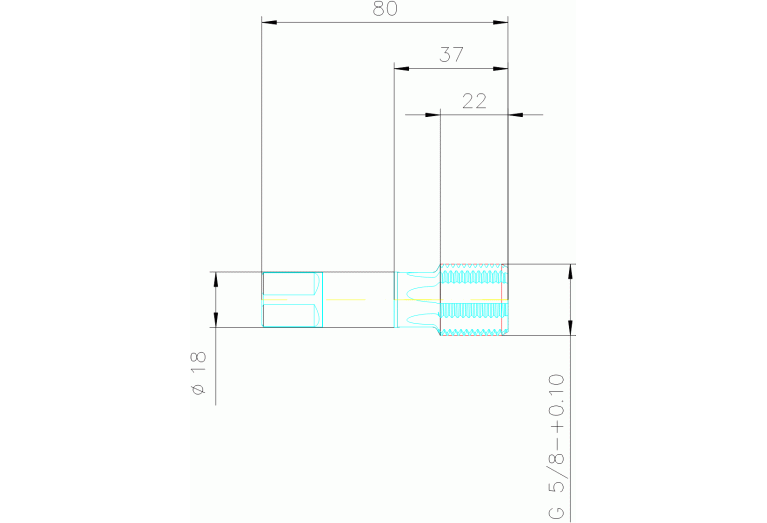

Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank 24195-G5/8

24195-G5/8

24195-G5/8 24195-G5/8 24195-G5/8 24195-G5/8

24195-G5/8

Walter
Артикул: 5078798
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01802105
FamilyProducts
HSS-E taps, short
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
DUMMY
HAND Cutting direction
R - Right
ID Technical product number
5078798
Interface codes
J6 / J61
ISO
ZYL21G1800h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0180
LOC-03 DCONMS Diameter
18 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21G1800h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01802105
Name Identifying order number
24195-G5/8
NOF Flute count
6
OAL Overall length
80 mm
PLCD Gate diameter
20.82 mm
STDNO Standard
DIN 2184-2
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
1.738148 mm
TCTR Thread tolerance class
NORMAL
TD Thread diameter
22.911 mm
TDFR Thread diameter nominal fraction
5/8 in
THFT Thread form type
G
THL Thread cutting part length
22 mm
THOD Thread designation
G5/8-14-NORMAL
TP Thread pitch
1.814 mm
TPI Threads per inch
14 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.167 kg
