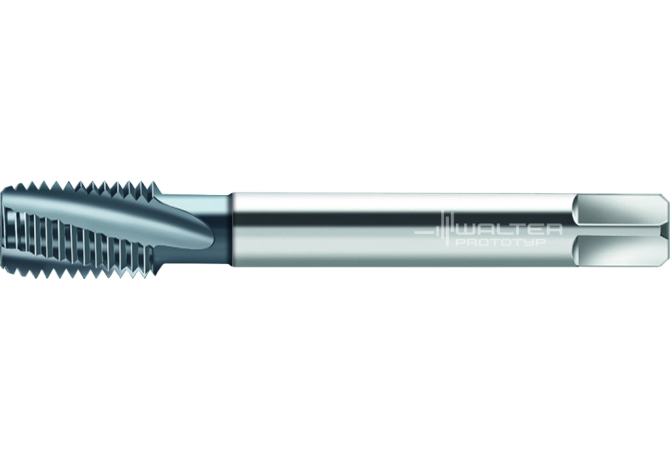

Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank 22460206-UNC1/2

22460206-UNC1/2

22460206-UNC1/2 22460206-UNC1/2 22460206-UNC1/2

22460206-UNC1/2

Walter
Артикул: 7513069
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiCN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00902105
FamilyProducts
HSS-E PM machine taps
FHA Flute helix angle
25 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
TICN
HAND Cutting direction
R - Right
ID Technical product number
7513069
Interface codes
J6 / J61
ISO
ZYL21F9000h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0090
LOC-03 DCONMS Diameter
9 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21F9000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00902105
LS Shank length
30 mm
Materials
P,S
Name Identifying order number
22460206-UNC1/2
NOF Flute count
4
OAL Overall length
110 mm
PLCD Gate diameter
10.65 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 2184-1
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
5.48 mm
TCTR Thread tolerance class
2B
TDFR Thread diameter nominal fraction
1/2 in
TDIN Thread diameter nominal inch
0.5 in
THFT Thread form type
UNC
THL Thread cutting part length
23 mm
THOD Thread designation
UNC1/2-13-2B
TPI Threads per inch
13 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.059 kg
