Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank 22257-UNC9/16

22257-UNC9/16

22257-UNC9/16 22257-UNC9/16 22257-UNC9/16 22257-UNC9/16

22257-UNC9/16

Walter
Артикул: 5078048
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01102105
FamilyProducts
HSS-E PM machine taps
FHA Flute helix angle
0 Degree
GRDMFG Grade manufacturers designation
UNBESCHICH
HAND Cutting direction
R - Right
ID Technical product number
5078048
Interface codes
J6 / J61
ISO
ZYL21G1100h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0110
LOC-03 DCONMS Diameter
11 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21G1100h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01102105
Name Identifying order number
22257-UNC9/16
NOF Flute count
4

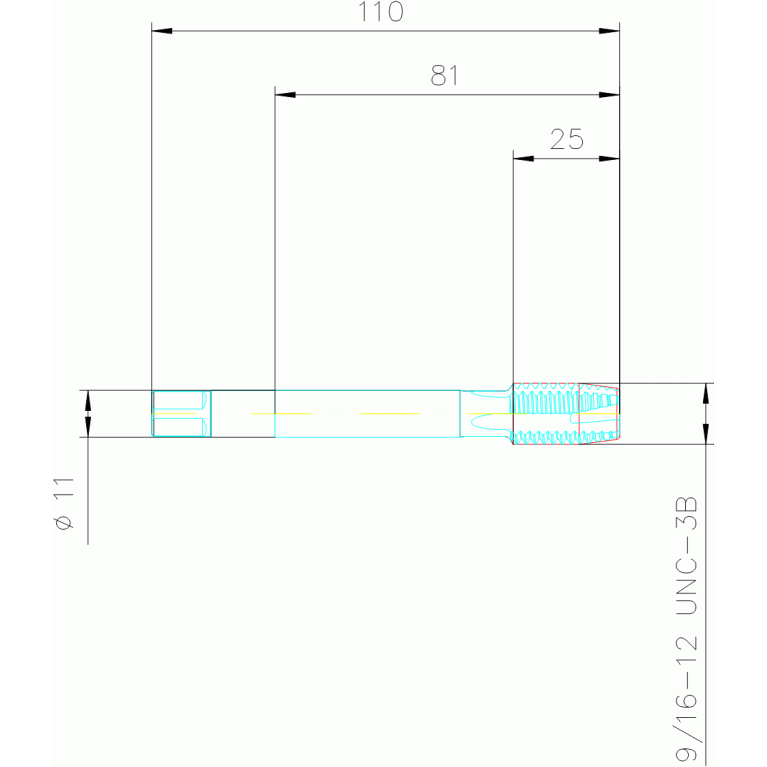

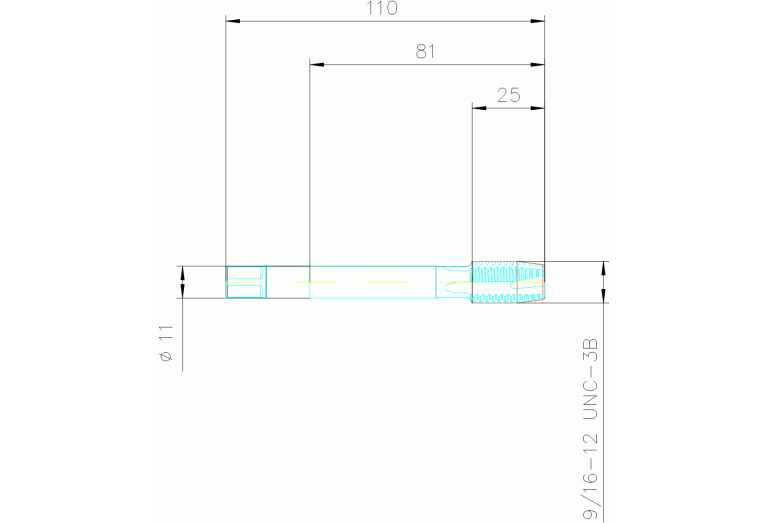

OAL Overall length
110 mm
PLCD Gate diameter
12.07 mm
STDNO Standard
DIN 2184-1
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
9.53 mm
TCTR Thread tolerance class
3B
TD Thread diameter
14.2875 mm
TDFR Thread diameter nominal fraction
9/16 in
THFT Thread form type
UNC
THL Thread cutting part length
25 mm
THOD Thread designation
UNC9/16-12-3B
TP Thread pitch
2.117 mm
TPI Threads per inch
12 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.079 kg
