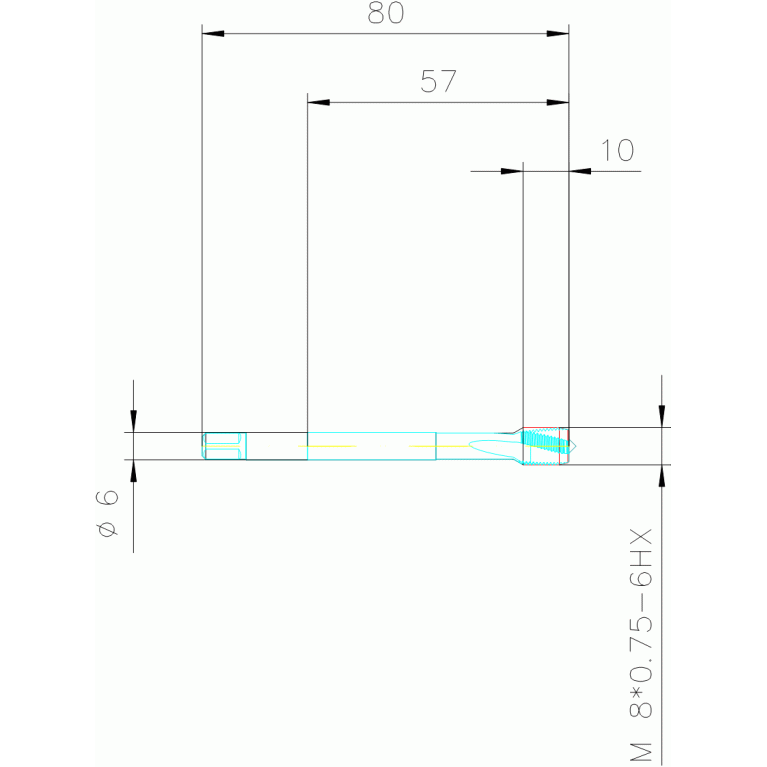

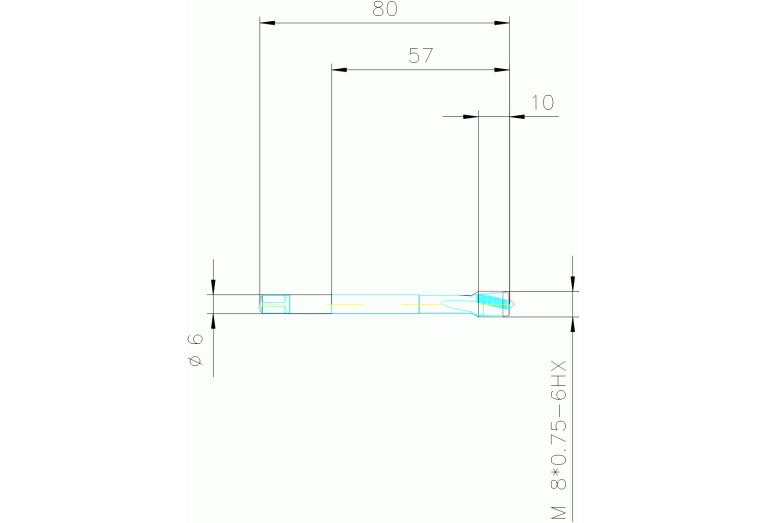

Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank 21466-M8X0.75

21466-M8X0.75

21466-M8X0.75 21466-M8X0.75 21466-M8X0.75 21466-M8X0.75

21466-M8X0.75

Walter
Артикул: 5077683
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00602105
FamilyProducts
HSS-E PM machine taps
FHA Flute helix angle
15 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
UNBESCHICH
HAND Cutting direction
R - Right
ID Technical product number
5077683
Interface codes
J6 / J61
ISO
ZYL21F6000h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21F6000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00602105
Name Identifying order number
21466-M8X0.75
NOF Flute count
3
OAL Overall length
81.57 mm
PLCD Gate diameter
7.21 mm
STDNO Standard
DIN 374
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.11 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
8 mm
THFT Thread form type
MF
THL Thread cutting part length
10 mm
THOD Thread designation
MF8x0.75-6HX
TP Thread pitch
0.75 mm
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.02 kg
