20567-M18
20567-M18
Артикул:
5076994
В наличии
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01402105
FamilyProducts
HSS-E machine taps
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
DUMMY
HAND Cutting direction
R - Right
ID Technical product number
5076994
Interface codes
J6 / J61
ISO
ZYL21G1400$$$$
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0140
LOC-03 DCONMS Diameter
14 mm
LOC-03 ISO
ZYL21G1400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01402105
Name Identifying order number
20567-M18
NOF Flute count
4

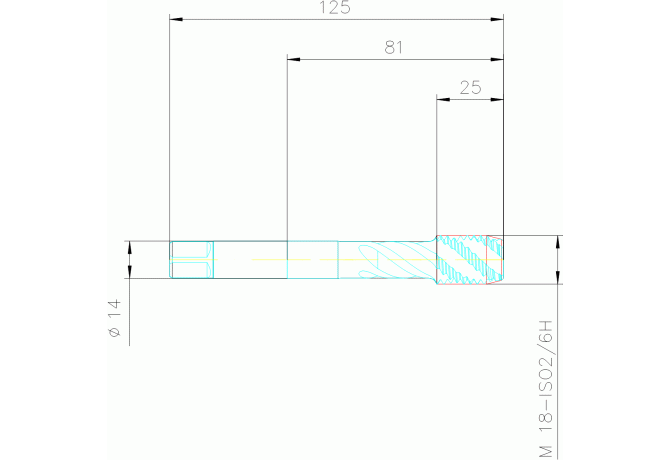

OAL Overall length
125 mm
PLCD Gate diameter
15.38 mm
STDNO Standard
DIN 376
TCL Tap chamfer length
5.268222 mm
TCTR Thread tolerance class
6H
TD Thread diameter
18 mm
THFT Thread form type
M
THL Thread cutting part length
25 mm
THOD Thread designation
M18x2.5-6H
TP Thread pitch
2.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.152 kg
