131762 M12
131762 M12
Артикул:
131762 M12
В наличии
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiCN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
DIN
ZYL00902105
FamilyProducts
Machine taps extra long
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS E-PM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0090
LOC-03 DCONMS Diameter
9 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00902105
LS Shank length
176 mm
Name Identifying order number
131762 M12
NOF Flute count
3

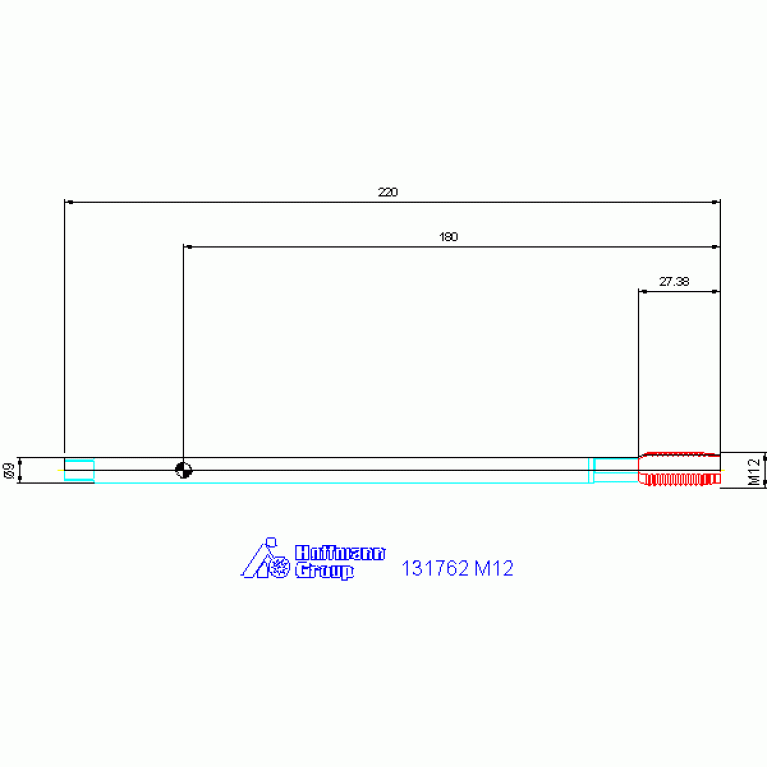

OAL Overall length
220 mm
PLCD Gate diameter
10.2 mm
PLG Plug style
B - Kappa r 8°
TCTR Thread tolerance class
6HX
TD Thread diameter
12 mm
THFT Thread form type
M
THL Thread cutting part length
27.38 mm
THOD Thread designation
M12-6HX
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
WT Weight of item
0.11 kg
