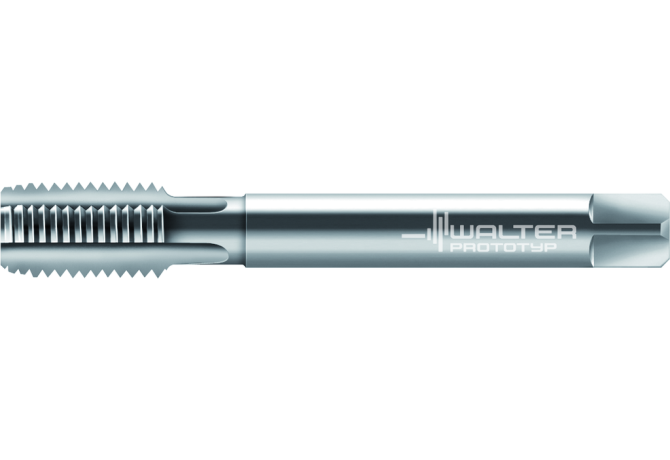

AC25361-NPT1/16

AC25361-NPT1/16 AC25361-NPT1/16 AC25361-NPT1/16

AC25361-NPT1/16

Walter
Артикул: 5348609
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL03132125
DN Neck diameter
7.6 mm
FamilyProducts
HSS-E machine taps
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
UNBESCHICH
HAND Cutting direction
R - Right
ID Technical product number
5348609
Interface codes
J6 / J61
ISO
ZYL21R3130h$09
ISYC Subclass
301-00 - Thread cutting tap, forming tap, cutting die unspecified
LDRED Neck length
14 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0313
LOC-03 DCONMS Diameter
7.9502 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21R3130h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03132125
Name Identifying order number
AC25361-NPT1/16
NOF Flute count
3
OAL Overall length
80 mm
PLCD Gate diameter
6.1 mm
STDNO Standard
DIN/ANSI
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.82 mm
TCTR Thread tolerance class
NORMAL
TD Thread diameter
7.717 mm
TDFR Thread diameter nominal fraction
1/16 in
TG Taper ratio
1:16
THFT Thread form type
NPT
THL Thread cutting part length
14 mm
THOD Thread designation
NPT1/16-27-NORMAL
TP Thread pitch
0.9407 mm
TPI Threads per inch
27 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.023 kg
