Главная Каталог продукции Toolunited 10 301-00 - Thread cutting tap, forming tap, cutting die unspecified A0181000.4122

A0181000.4122

Артикул: A0181000.4122

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

ohne

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/1/2024

DIN

ZYL03602105

DRVS Drive size

29 mm

FamilyProducts

machine tap

FHH Flute helix hand

N - Hand of helix neutral

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-00 - Thread cutting tap, forming tap, cutting die unspecified

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0360

LOC-03 DCONMS Diameter

36 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03602105

Name Identifying order number

A0181000.4122

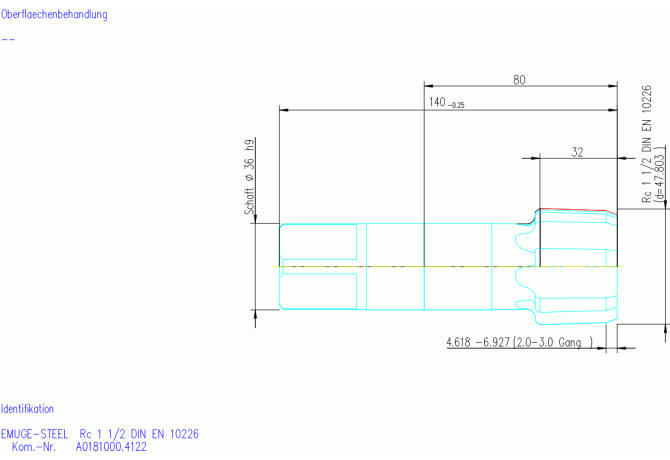

OAL Overall length

140 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN 2184-2

TD Thread diameter

47.803 mm

TDFR Thread diameter nominal fraction

1 1/2 in

TDIN Thread diameter nominal inch

1.5 in

THFT Thread form type

TP Thread pitch

2.309 mm

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

1.077 kg
