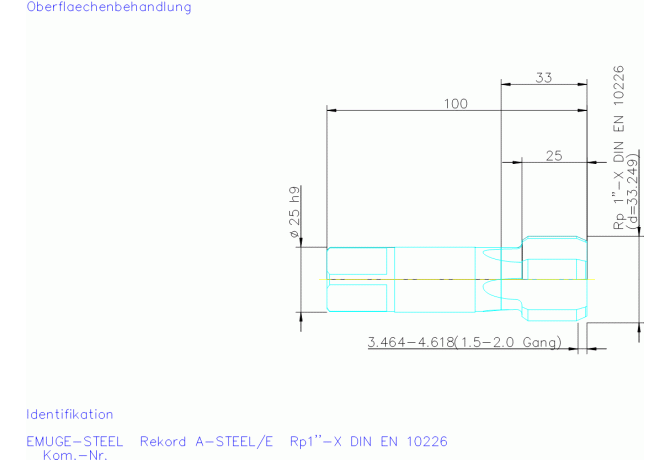

Главная Каталог продукции Toolunited 10 301-00 - Thread cutting tap, forming tap, cutting die unspecified A0111001.4097

A0111001.4097

Артикул: A0111001.4097

В наличии

В корзину

Описание

Характеристики

COATN Coating

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DIN

ZYL02502105

DRVS Drive size

20 mm

FamilyProducts

MGB-Rek.A-STEEL/E

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-00 - Thread cutting tap, forming tap, cutting die unspecified

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02502105

Name Identifying order number

A0111001.4097

OAL Overall length

100 mm

PLG Plug style

E - Kappa r 23°

STDNO Standard

DIN 5157

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

TD Thread diameter

33.249 mm

TDFR Thread diameter nominal fraction

1 in

TDIN Thread diameter nominal inch

1 in

TG Taper ratio

1:16

THFT Thread form type

THOD Thread designation

Rp1-X

TP Thread pitch

2.309 mm

TPI Threads per inch

11 1/in

Working process

No working processes available

WT Weight of item

0.363 kg
