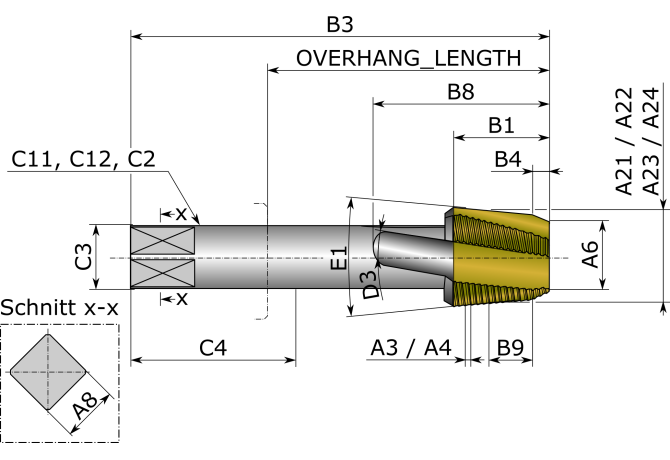

Главная Каталог продукции Toolunited 10 301-00 - Thread cutting tap, forming tap, cutting die unspecified 60087600

60087600

Артикул: 60087600

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

OSG

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

DIN

ZYL00702105

DRVS Drive size

5.5 mm

FamilyProducts

OSG NPT 1/8 DIN2181

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-00 - Thread cutting tap, forming tap, cutting die unspecified

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0070

LOC-03 DCONMS Diameter

7 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00702105

LS Shank length

38 mm

Name Identifying order number

60087600

NOF Flute count

OAL Overall length

63 mm

OVERHANG LENGTH Overhang length

31 mm

PLCD Gate diameter

7.895 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN2181

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

2.35 mm

TCTR Thread tolerance class

GH3

TDFR Thread diameter nominal fraction

1/8 in

TG Taper ratio

1:16

THFT Thread form type

NPT

THL Thread cutting part length

15 mm

THOD Thread designation

NPT1/8-27-GH3

TPI Threads per inch

27 1/in

TTPID Tap type identifier

2 - Hand tap

Working process

No working processes available
