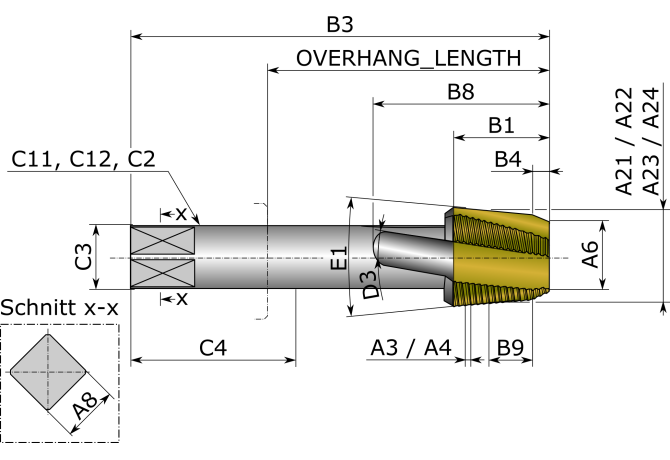

Главная Каталог продукции Toolunited 10 301-00 - Thread cutting tap, forming tap, cutting die unspecified 48281414

48281414

Артикул: 48281414

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

Steam oxide

COMPC Company code

OSG

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

DIN

ZYL01602105

DRVS Drive size

12 mm

FamilyProducts

OSG S-TPT Rc 1/2x14 DIN5156

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-00 - Thread cutting tap, forming tap, cutting die unspecified

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01602105

LS Shank length

65 mm

Name Identifying order number

48281414

NOF Flute count

OAL Overall length

125 mm

OVERHANG LENGTH Overhang length

65 mm

PLCD Gate diameter

17.169 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN5156

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

4.54 mm

TDFR Thread diameter nominal fraction

1/2 in

THFT Thread form type

THL Thread cutting part length

26 mm

TPI Threads per inch

14 1/in

TTPID Tap type identifier

2 - Hand tap

Working process

No working processes available
