Главная Каталог продукции Toolunited 10 204-02 - Reaming insert with two cutting edges and double plug chamfer RM-SEI-4C-12 IC07

RM-SEI-4C-12 IC07

Артикул: RM-SEI-4C-12 IC07

В наличии

В корзину

Описание

Характеристики

COMPC Company code

IS - Iscar

DIN

IS-INDEXHREAM-4

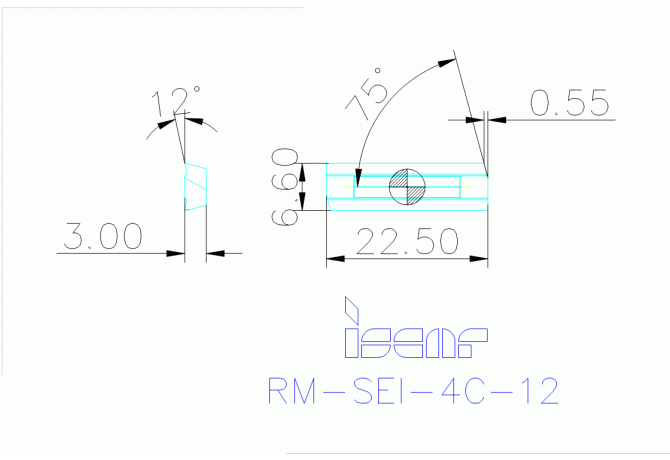

EPSR Insert included angle

90 Degree

FamilyProducts

Single-edged reaming insert

FCE Face cutting edge

0 - No

GAN Insert rake angle

12 Degree

GRDMFG Grade manufacturers designation

IC07

GRDPRIO Standard designation of the grade main application

HW-M10

IFS Insert mounting style code

1 - Without bore

IH Insert hand

R - Right

INSL Insert length

22.5 mm

Interface codes

J6 /

ISYC Subclass

204-02 - Reaming insert with two cutting edges and double plug chamfer

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IS-INDEXHREAM-4

Name Identifying order number

RM-SEI-4C-12 IC07

PLGANG Plug angle

75 Degree

PLGL2 Plug length 2

0.55 mm

S Insert thickness

3 mm

S1 Insert thickness total

3 mm

STDNO Standard

W1 Insert width

6.6 mm

Working process

REI - Cylindrical reaming
