P4-EN3-12 CP15
P4-EN3-12 CP15
Артикул:
02462495
В наличии
Характеристики
CB Chip breaker face count
1 - With chip breaker one-side
COMPC Company code
SO - SECO Tools
Delivery state valid from
6/7/2017
DIN
SO-SO P4-EN3-
FamilyProducts
P4-EN3-12 CP15
GRDMFG Grade manufacturers designation
CP15
ID Technical product number
02462495
IH Insert hand
R - Right

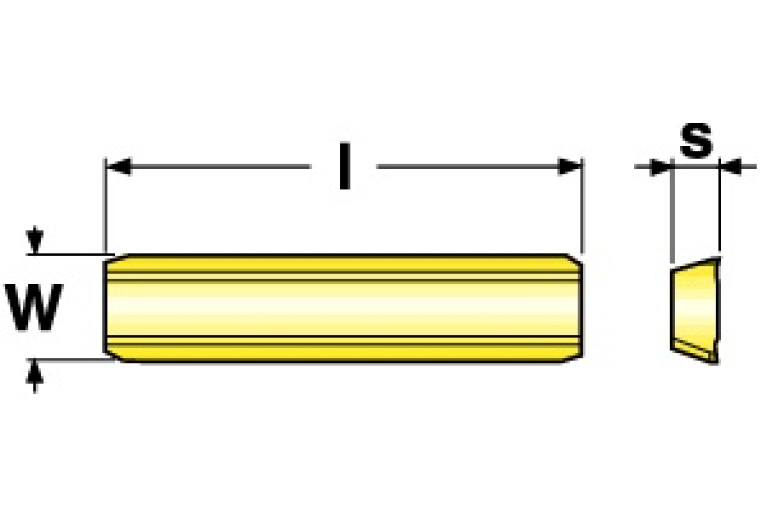

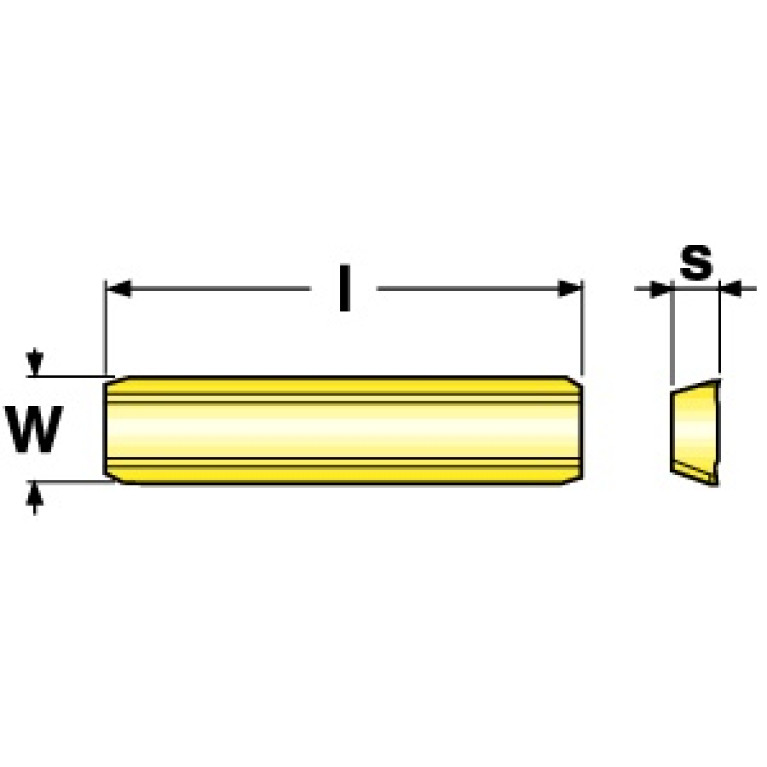

INSL Insert length
25 mm
Interface codes
J6 /
ISYC Subclass
204-02 - Reaming insert with two cutting edges and double plug chamfer
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SO-SO P4-EN3-
Name Identifying order number
P4-EN3-12 CP15
S Insert thickness
2.3 mm
Working process
REI - Cylindrical reaming
WT Weight of item
0.005 kg
