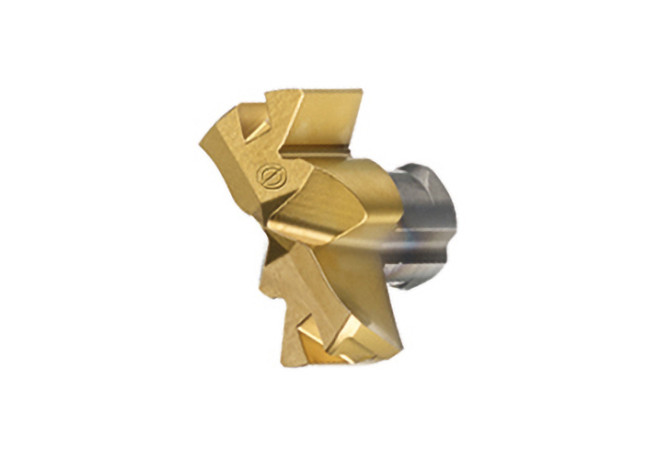

TPF1650R01 IN2505
TPF1650R01 IN2505
Артикул:
6125290
В наличии
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit

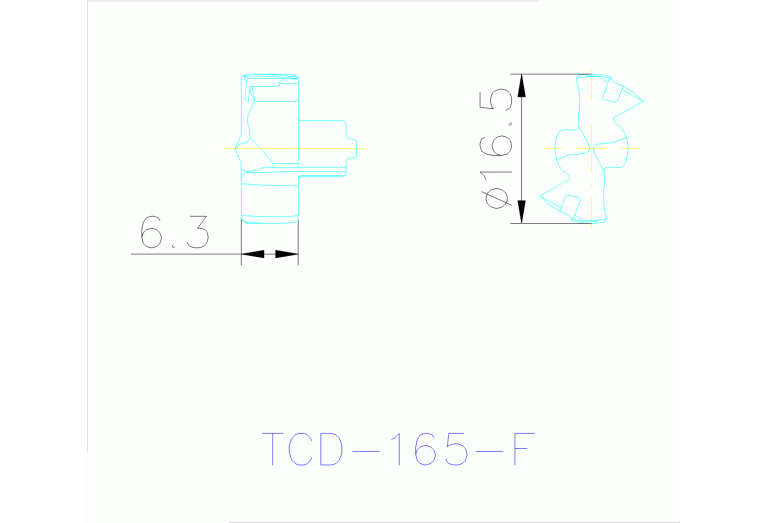

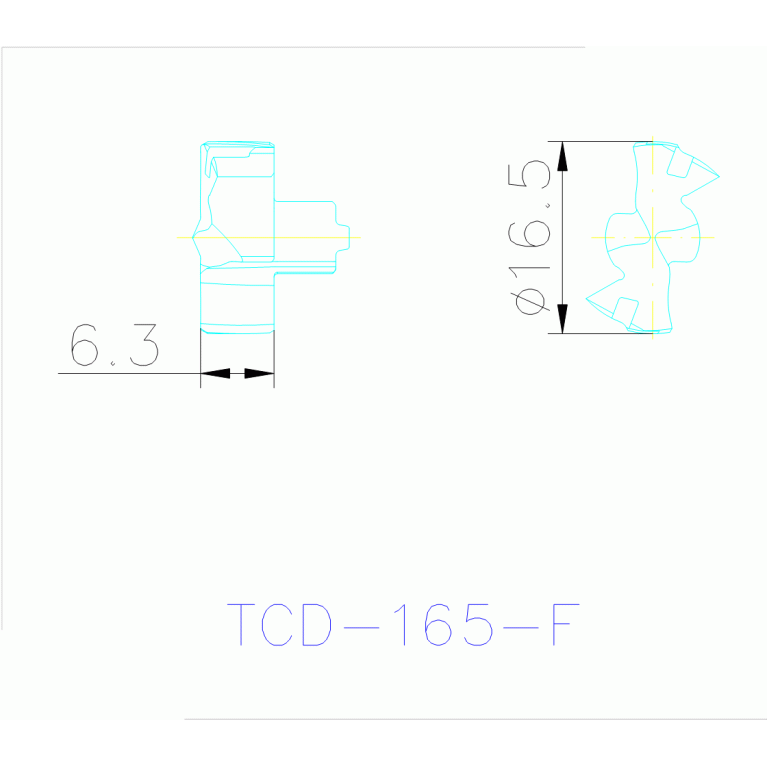

DC Cutting diameter
16.5 mm
Delivery state
LA - Soon discontinued
DIN
IL-BKTXX160R
FamilyProducts
Gold-Twist Boring Heads
GRD2ND Standard designation of the grade 2nd application
M15-M35
GRD3RD Standard designation of the grade 3rd application
K20-K40
GRDMFG Grade manufacturers designation
IN2505
GRDPRIO Standard designation of the grade main application
P15-P30
GRDSYC Grind style code
E
HAND Cutting direction
R - Right
ID Technical product number
6125290
Interface codes
J6 /
ISYC Subclass
203-03 - Replaceable insert flatted with chip flute
LF Functional length
5.6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
IL-BKTXX160R
LPR Protruding length
7 mm
Name Identifying order number
TPF1650R01 IN2505
NOF Flute count
2
OAL Overall length
6.99 mm
OALN
5.6 mm
PL Point length
1.39 mm

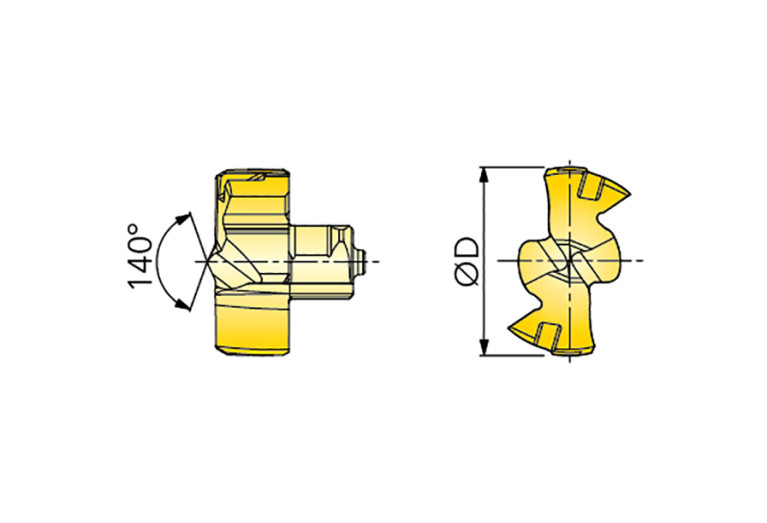

SIG Point angle 1st step
140 Degree
Working process
BVB - Drilling
