Главная Каталог продукции Toolunited 10 203-03 - Replaceable insert flatted with chip flute TKA0850R01 IN2505

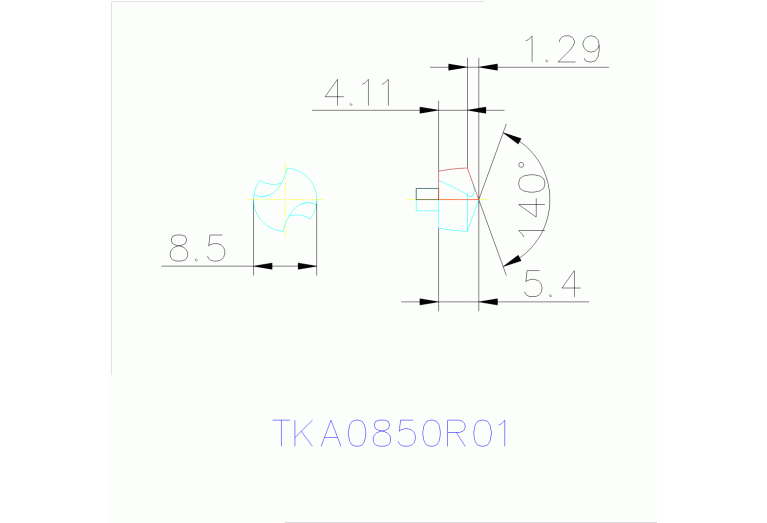

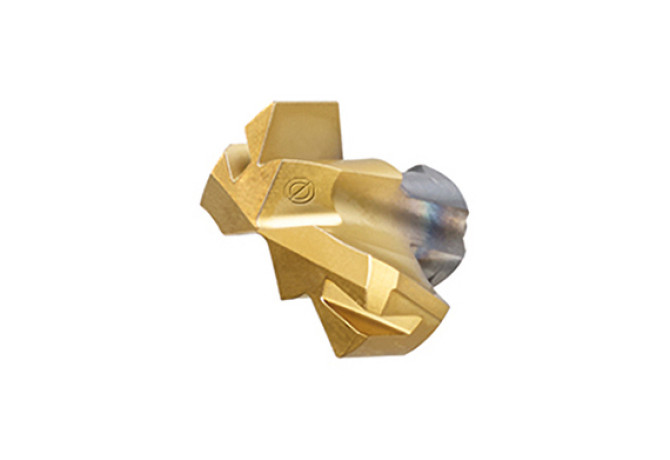

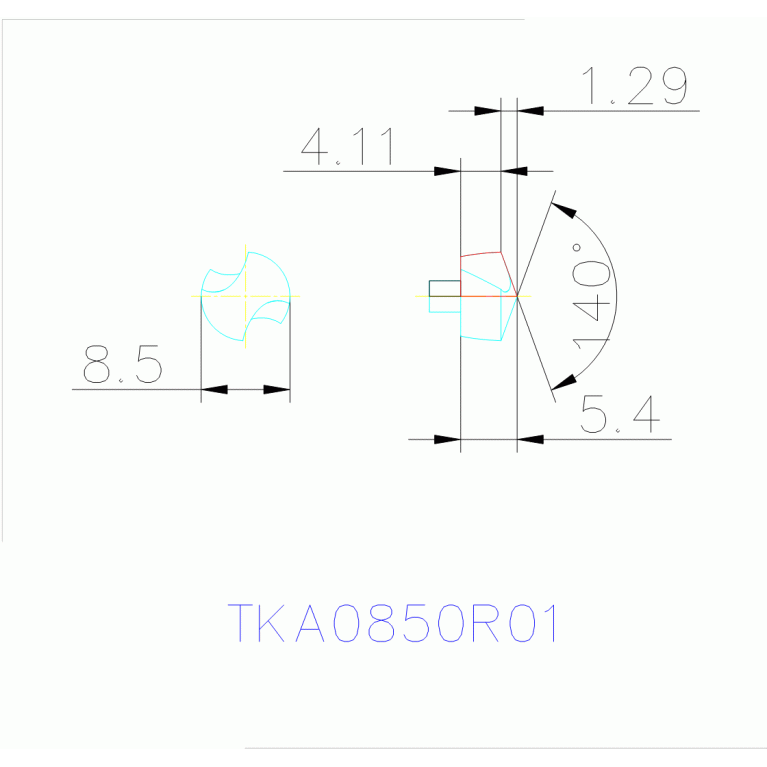

TKA0850R01 IN2505

Артикул: 4209855

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8.5 mm

Delivery state

LA - Soon discontinued

DIN

IL-BKTXX085R

FamilyProducts

Gold-Twist Boring Heads

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P15-P30

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

4209855

Interface codes

J6 /

ISYC Subclass

203-03 - Replaceable insert flatted with chip flute

LF Functional length

3.658 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IL-BKTXX085R

LPR Protruding length

5.41 mm

Name Identifying order number

TKA0850R01 IN2505

NOF Flute count

PL Point length

1.753 mm

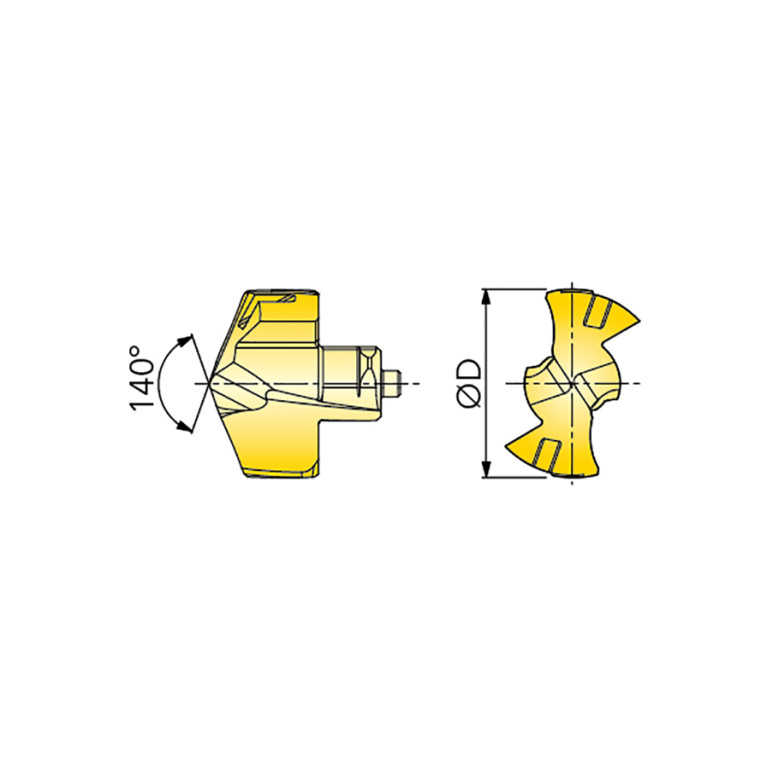

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling
