P6001-D12,95R WXP45
P6001-D12,95R WXP45
Артикул:
6255571
В наличии
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
12.95 mm
Delivery state valid from
12/1/2023
DIN
W-CB12A$$$0R$$$$$
FamilyProducts

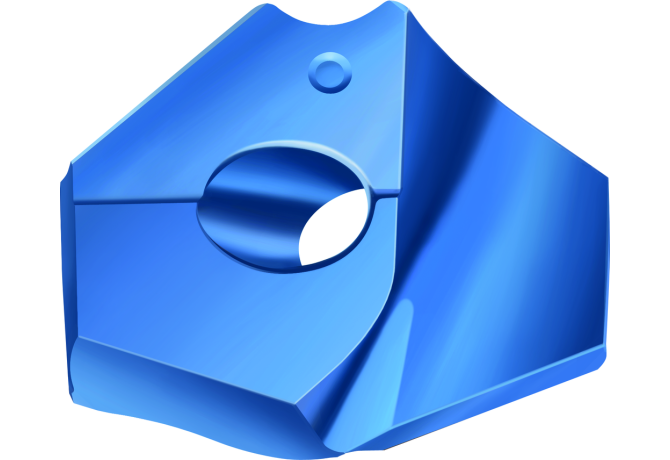

Drill inserts P6001
GRDMFG Grade manufacturers designation
WXP45
HAND Cutting direction
R - Right
ID Technical product number
6255571
Interface codes
J6 / J61
ISO
WR$$CB12A$$$0R$$$$$
ISYC Subclass
203-02 - Replaceable insert, flat
LOC-03 ISO
WR$$CB12A$$$0R$$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
W-CB12A$$$0R$$$$$
LPR Protruding length
9.9 mm
Name Identifying order number
P6001-D12,95R WXP45
NOF Flute count
2
OAL Overall length
9.9 mm
PL Point length
2.348 mm
S1 Insert thickness total
3.6 mm
SIG Point angle 1st step
140 Degree
Working process
BVB - Drilling
WT Weight of item
0.011 kg
