QCP 195-2M IC908
QCP 195-2M IC908
Артикул:
3325714
В наличии
Характеристики
COATN Coating / Покрытие
TiAlN
COMPC Company code
IS - Iscar

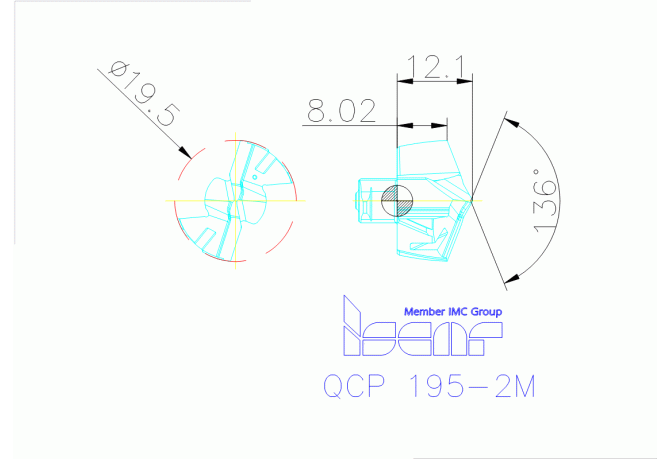

DC Cutting diameter
19.5 mm
DIN
IS-236213809856552
FamilyProducts
Double Margin Drilling Heads for DCN Drills for Machining Steel with High Surface Finish Results
GRDMFG Grade manufacturers designation
IC908
ID Technical product number
3325714
Interface codes
J6 / J61
ISO
IS$$236213809856552
ISYC Subclass
203-01 - Replaceable insert with chip flute
LF Functional length
8.02 mm
LOC-03 ISO
IS$$236213809856552
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
IS-236213809856552
LPR Protruding length
12.11 mm
Name Identifying order number
QCP 195-2M IC908
PL Point length
4.09 mm
SIG Point angle 1st step
136 Degree
Working process
No working processes available
WT Weight of item
0.02 kg
