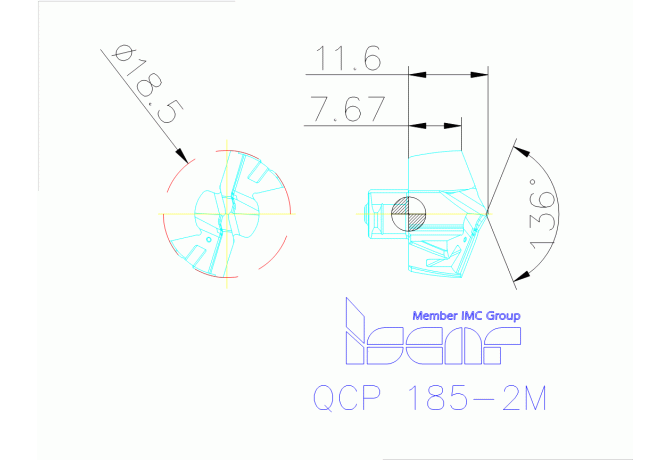

QCP 185-2M IC908
QCP 185-2M IC908
Артикул:
3325702
В наличии
Характеристики
COATN Coating
TiAlN
COMPC Company code
IS - Iscar
DC Cutting diameter
18.5 mm
DIN
IS-225955742255376
FamilyProducts
Double Margin Drilling Heads for DCN Drills for Machining Steel with High Surface Finish Results
GRDMFG Grade manufacturers designation
IC908
ID Technical product number
3325702
Interface codes
J6 / J61
ISO
IS$$225955742255376
ISYC Subclass
203-01 - Replaceable insert with chip flute
LF Functional length
7.67 mm
LOC-03 ISO
IS$$225955742255376
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
IS-225955742255376
LPR Protruding length
11.55 mm
Name Identifying order number
QCP 185-2M IC908
PL Point length
3.88 mm
SIG Point angle 1st step
136 Degree
Working process
No working processes available
WT Weight of item
0 kg
