QCP 132-2M IC908

Артикул: 3325657

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

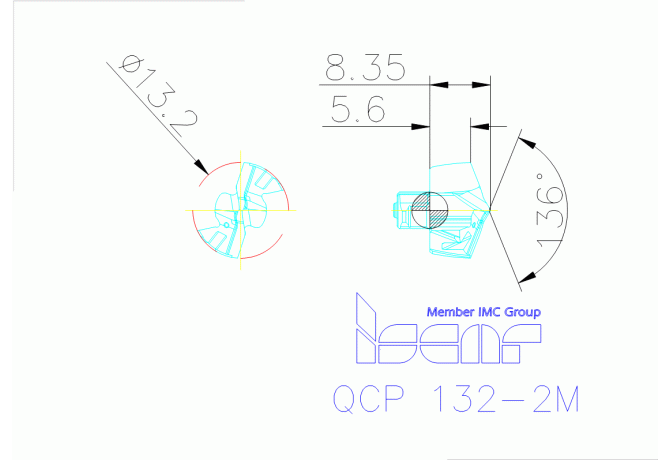

DC Cutting diameter

13.2 mm

DIN

IS-235903886725101

FamilyProducts

Double Margin Drilling Heads for DCN Drills for Machining Steel with High Surface Finish Results

GRDMFG Grade manufacturers designation

IC908

ID Technical product number

3325657

Interface codes

J6 / J61

ISO

IS$$235903886725101

ISYC Subclass

203-01 - Replaceable insert with chip flute

LF Functional length

5.6 mm

LOC-03 ISO

IS$$235903886725101

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IS-235903886725101

LPR Protruding length

8.35 mm

Name Identifying order number

QCP 132-2M IC908

PL Point length

2.75 mm

SIG Point angle 1st step

136 Degree

Working process

No working processes available

WT Weight of item

0 kg
