Главная Каталог продукции Toolunited 10 203-01 - Replaceable insert with chip flute QCP 101-2M IC908

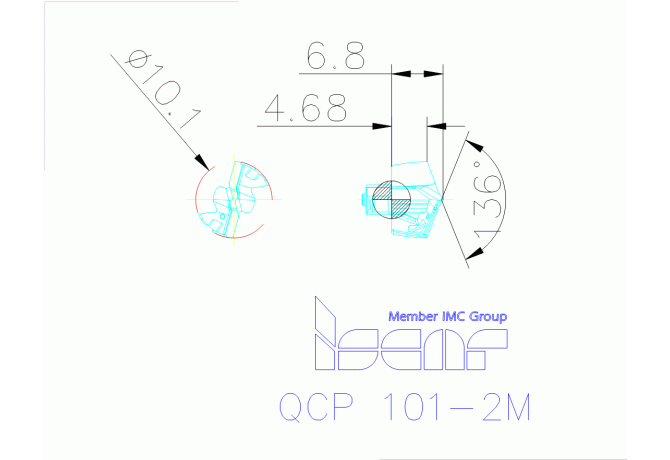

QCP 101-2M IC908

Артикул: 3325626

В наличии

В корзину

Описание

Характеристики

COATN Coating

TiAlN

COMPC Company code

IS - Iscar

DC Cutting diameter

10.1 mm

DIN

IS-247021188961560

FamilyProducts

Double Margin Drilling Heads for DCN Drills for Machining Steel with High Surface Finish Results

GRDMFG Grade manufacturers designation

IC908

ID Technical product number

3325626

Interface codes

J6 / J61

ISO

IS$$247021188961560

ISYC Subclass

203-01 - Replaceable insert with chip flute

LF Functional length

4.68 mm

LOC-03 ISO

IS$$247021188961560

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IS-247021188961560

LPR Protruding length

6.79 mm

Name Identifying order number

QCP 101-2M IC908

PL Point length

2.11 mm

SIG Point angle 1st step

136 Degree

Working process

No working processes available

WT Weight of item

0 kg
