Главная Каталог продукции Toolunited 10 203-01 - Replaceable insert with chip flute ICP 084-2M IC908

ICP 084-2M IC908

Артикул: 5509558

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

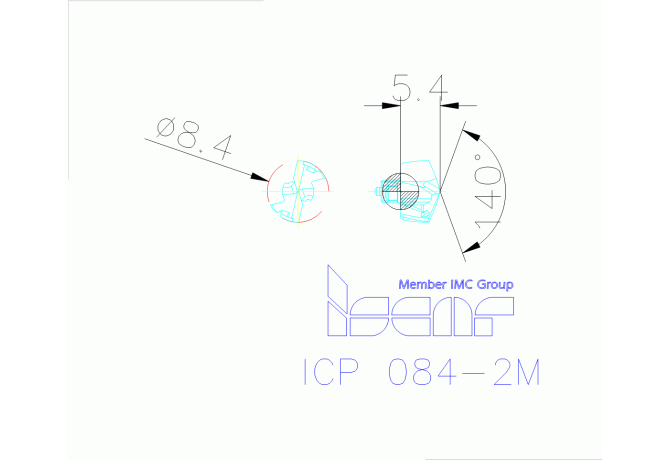

DC Cutting diameter

8.4 mm

DIN

IS-226186651945431

FamilyProducts

Double Margin Drilling Heads for DCN Drills for Machining Steel with High Surface Finish Results

GRDMFG Grade manufacturers designation

IC908

ID Technical product number

5509558

Interface codes

J6 / J61

ISO

IS$$226186651945431

ISYC Subclass

203-01 - Replaceable insert with chip flute

LF Functional length

3.87 mm

LOC-03 ISO

IS$$226186651945431

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IS-226186651945431

LPR Protruding length

5.4 mm

Name Identifying order number

ICP 084-2M IC908

PL Point length

1.53 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling

WT Weight of item

0 kg
