Главная Каталог продукции Toolunited 10 203-01 - Replaceable insert with chip flute ICM 131 IC907

ICM 131 IC907

Артикул: 5567195

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TiAlN+TiN

COMPC Company code

IS - Iscar

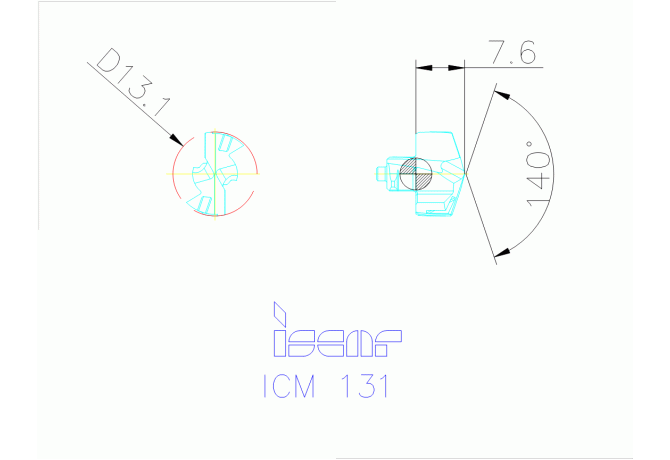

DC Cutting diameter

13.1 mm

DIN

IS-215385421354614

FamilyProducts

Exchangeable DCN Drill Heads, for Stainless Steel and High Temperature Alloys (ISO M&S Materials)

GRDMFG Grade manufacturers designation

IC907

ID Technical product number

5567195

Interface codes

J6 / J61

ISO

IS$$215385421354614

ISYC Subclass

203-01 - Replaceable insert with chip flute

LF Functional length

5.22 mm

LOC-03 ISO

IS$$215385421354614

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IS-215385421354614

LPR Protruding length

7.6 mm

Name Identifying order number

ICM 131 IC907

PL Point length

2.38 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling

WT Weight of item

0.01 kg
