Главная Каталог продукции Toolunited 10 203-01 - Replaceable insert with chip flute HCP 128-IQ IC908

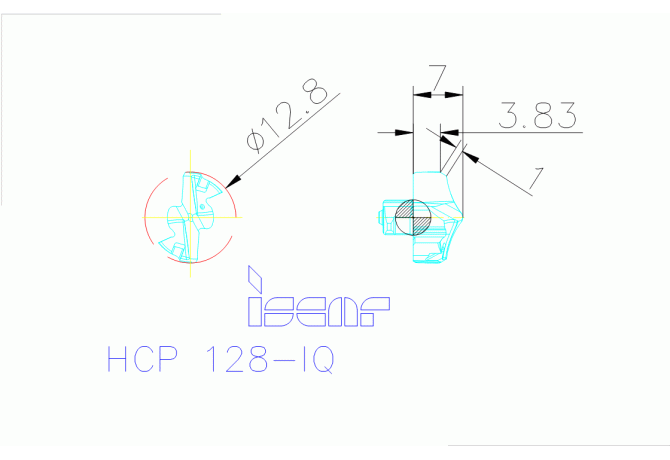

HCP 128-IQ IC908

Артикул: 5567959

В наличии

В корзину

Описание

Характеристики

COATN Coating

TiAlN

COMPC Company code

IS - Iscar

DC Cutting diameter

12.8 mm

DIN

IS-236095945215389

FamilyProducts

Exchangeable DCN Drill Self-Centering Heads for Alloy Steel and Cast Iron

GRDMFG Grade manufacturers designation

IC908

ID Technical product number

5567959

Interface codes

J6 / J61

ISO

IS$$236095945215389

ISYC Subclass

203-01 - Replaceable insert with chip flute

LF Functional length

3.84 mm

LOC-03 ISO

IS$$236095945215389

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IS-236095945215389

LPR Protruding length

7 mm

Name Identifying order number

HCP 128-IQ IC908

PL Point length

3.16 mm

SIG Point angle 1st step

135 Degree

Working process

BVB - Drilling

WT Weight of item

0 kg
