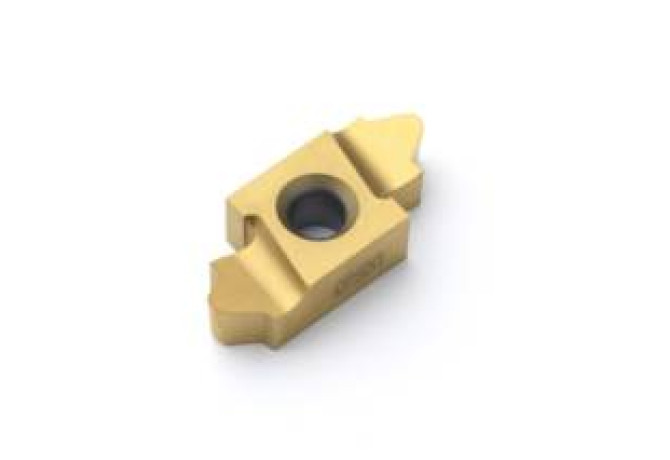

26ER-565-A-P CP500
26ER-565-A-P CP500
Артикул:
02465173
В наличии
Характеристики
COMPC Company code
SO - SECO Tools
Delivery state valid from
3/14/2020
FamilyProducts
26ER-565-A-P CP500
GRDMFG Grade manufacturers designation
CP500
ID Technical product number
02465173
IH Insert hand
R - Right
INSL Insert length
26 mm
Interface codes
/
ISYC Subclass
202-10 - Threading insert with two cutting edges
Name Identifying order number
26ER-565-A-P CP500
NOF Flute count
2

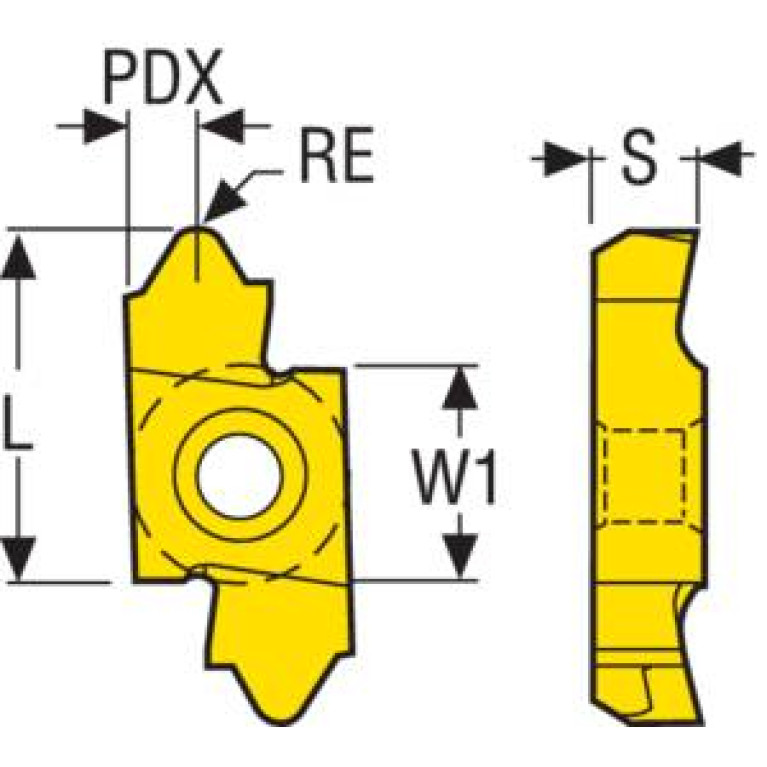

PDX Profile distance X
10.39 mm
PFS Profile form
6
PNA Profile included angle
60 Degree
S Insert thickness
7.69 mm
TTP Thread type
E
Working process
No working processes available
WT Weight of item
0.1 kg
