Главная Каталог продукции Toolunited 10 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth P26300-0601-D61 WSM37S

P26300-0601-D61 WSM37S

Артикул: 7493807

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

D61

CECC Cutting edge condition code

E - Rounded

COATN Coating

TiAlN+Al2O3+(Al)

COMPC Company code

W - Walter

CRE Spot radius

0.1 mm

D1 Fixing hole diameter

2.15 mm

Delivery state valid from

12/1/2023

DIN

W-TC06T1013RB$$01

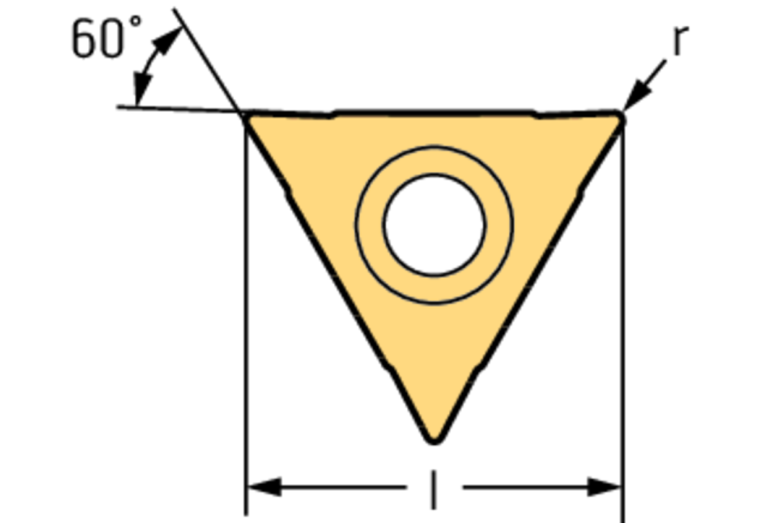

EPSR Insert included angle

60 Degree

FamilyProducts

Thread milling inserts - M, MF, UNC, UNF, UN P26300

GRDMFG Grade manufacturers designation

WSM37S

IC Inscribed circle diameter

3.97 mm

ID Technical product number

7493807

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J61

ISO

WR$$TC06T1013RB$$01

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03 ISO

WR$$TC06T1013RB$$01

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-TC06T1013RB$$01

Name Identifying order number

P26300-0601-D61 WSM37S

NOF Flute count

NT Tooth count

PAL Profile angle left hand

30 Degree

PAR Profile angle right hand

30 Degree

PDX Profile distance X

0 mm

PDY Profile distance Y

0.1 mm

PNA Profile included angle

60 Degree

S Insert thickness

1.98 mm

S1 Insert thickness total

1.98 mm

TCE Tipped cutting edge code

THFT Thread form type

VP60

TPIN Threads per inch minimum

TPIX Threads per inch maximum

TPN Thread pitch minimum

1.4 mm

TPT Thread profile type

TPX Thread pitch maximum

2.9 mm

TTP Thread type

I - Internal thread

Working process

FSC - Thread milling

WT Weight of item

0.001 kg
