27NR6VAMTOP CP500
27NR6VAMTOP CP500
Артикул:
02560811
В наличии
Характеристики
COMPC Company code
SO - SECO Tools
Delivery state valid from
3/14/2020
DIN
SO-SO 27NR
FamilyProducts
27NR6VAMTOP CP500
GRDMFG Grade manufacturers designation
CP500

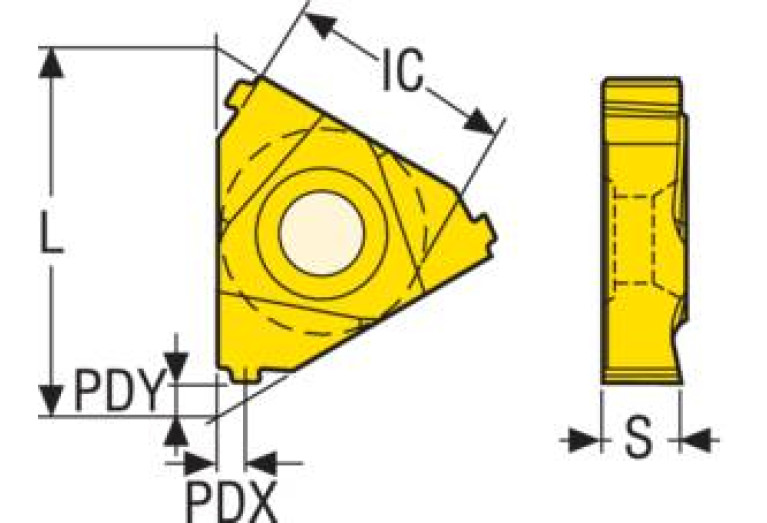

IC Inscribed circle diameter
15.875 mm
ID Technical product number
02560811
IH Insert hand
R - Right
Interface codes
J6 /
ISYC Subclass
202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SO-SO 27NR
Name Identifying order number
27NR6VAMTOP CP500
NOF Flute count
3
PDX Profile distance X
2 mm
PDY Profile distance Y
2.25 mm
PFS Profile form
8
S Insert thickness
6.15 mm
TPIN Threads per inch minimum
6
TPIX Threads per inch maximum
6
TTP Thread type
I - Internal thread
Working process
No working processes available
WT Weight of item
0.023 kg
