27ER5TC23/41.5 CP500
27ER5TC23/41.5 CP500
Артикул:
02555267
В наличии
Характеристики
COMPC Company code
SO - SECO Tools
Delivery state valid from
3/14/2020
DIN
SO-SO 27ER
FamilyProducts
27ER5TC23/41.5 CP500
GRDMFG Grade manufacturers designation
CP500

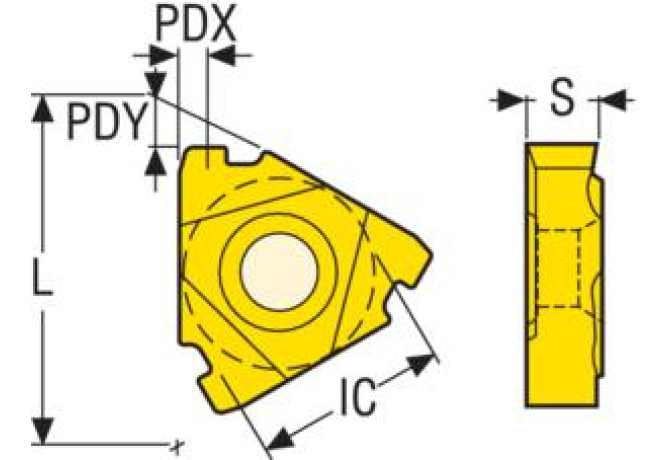

IC Inscribed circle diameter
15.875 mm
ID Technical product number
02555267
IH Insert hand
R - Right
Interface codes
J6 /
ISYC Subclass
202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SO-SO 27ER
Name Identifying order number
27ER5TC23/41.5 CP500
NameAnsi Identifying order number inch alternative
ABTCII5TPI3/4TPFEXT. CP500
NOF Flute count
3
PDX Profile distance X
2.04 mm
PDY Profile distance Y
2.57 mm
PFS Profile form
8
S Insert thickness
6.15 mm
TPIN Threads per inch minimum
5
TPIX Threads per inch maximum
5
TTP Thread type
E
Working process
No working processes available
WT Weight of item
0.022 kg
