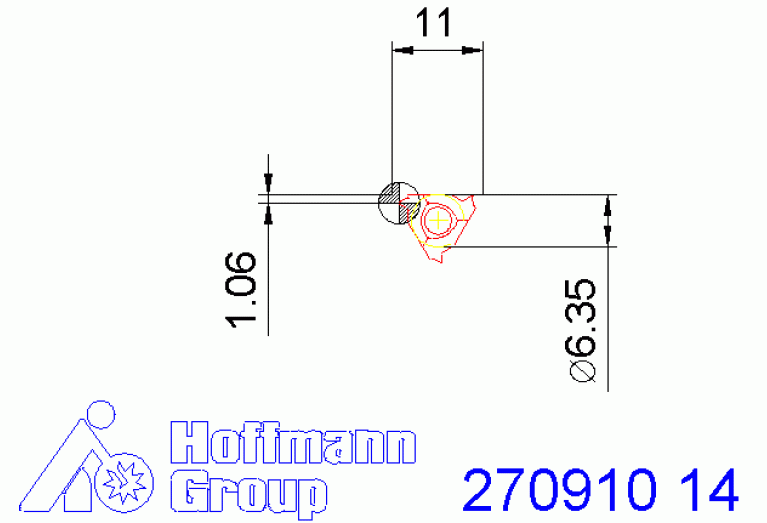

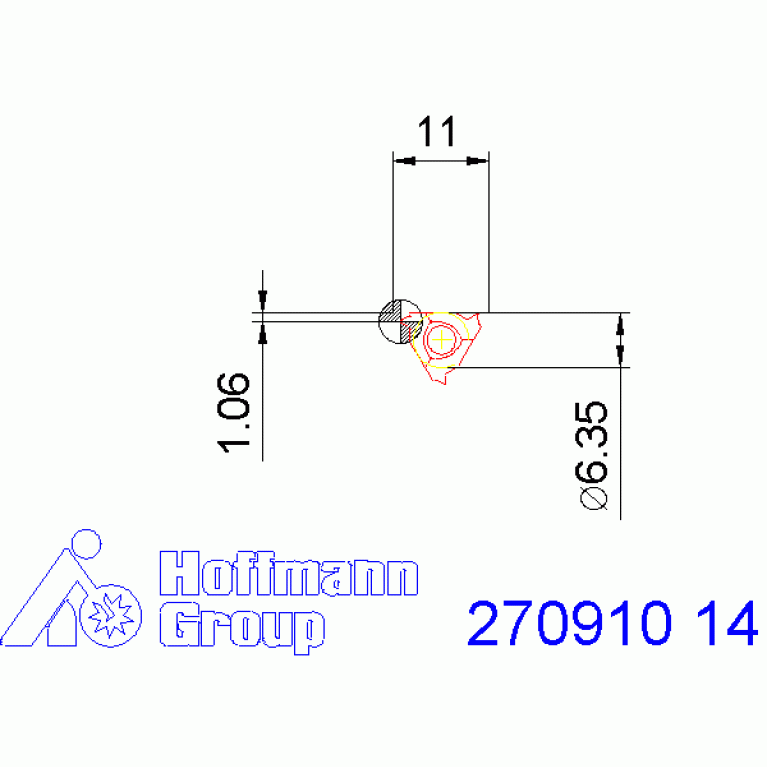

Главная Каталог продукции Toolunited 10 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth 270910 14

270910 14

Артикул: 270910 14

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

HOG - Hoffmann Group

CRE Spot radius

0.32 mm

DIN

HOG-1100IR14UN0304

FamilyProducts

GARANT Full profile insert 60°, internal, right-hand

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

HB7010

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

INSL Insert length

11 mm

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HOG-1100IR14UN0304

Name Identifying order number

270910 14

NOF Flute count

PDPT Profile depth insert

1.05 mm

PDX Profile distance X

1.1 mm

PDY Profile distance Y

0.9 mm

PNA Profile included angle

60 Degree

S1 Insert thickness total

3.17 mm

STDNO Standard

ANSI B1.1:74

TCE Tipped cutting edge code

THFT Thread form type

TPIN Threads per inch minimum

TPIX Threads per inch maximum

TPT Thread profile type

V - Full profile

W1 Insert width

0 mm

Working process

DGI - Thread turning, internal

WT Weight of item

0.001 kg
