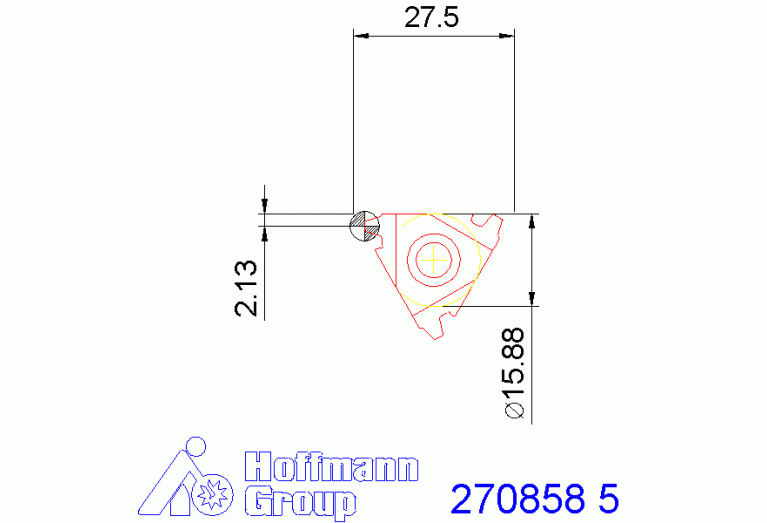

Главная Каталог продукции Toolunited 10 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth 270858 5

270858 5

Артикул: 270858 5

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

HOG - Hoffmann Group

CRE Spot radius

0.15 mm

DIN

HOG-2200EL5.0ISO0476

FamilyProducts

GARANT Semi-profile insert 30°, external, left-hand

GAN Insert rake angle

10 Degree

GRDMFG Grade manufacturers designation

HB7010

IC Inscribed circle diameter

15.88 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

INSL Insert length

27.5 mm

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HOG-2200EL5.0ISO0476

Name Identifying order number

270858 5

NOF Flute count

PDPT Profile depth insert

2.75 mm

PDX Profile distance X

2.5 mm

PDY Profile distance Y

2.1 mm

PNA Profile included angle

30 Degree

REL Corner radius left hand

0.3 mm

S1 Insert thickness total

4.76 mm

STDNO Standard

DIN103

TCE Tipped cutting edge code

THFT Thread form type

TPT Thread profile type

V - Full profile

W1 Insert width

0 mm

Working process

DGA - Thread turning, external

WT Weight of item

0.004 kg
