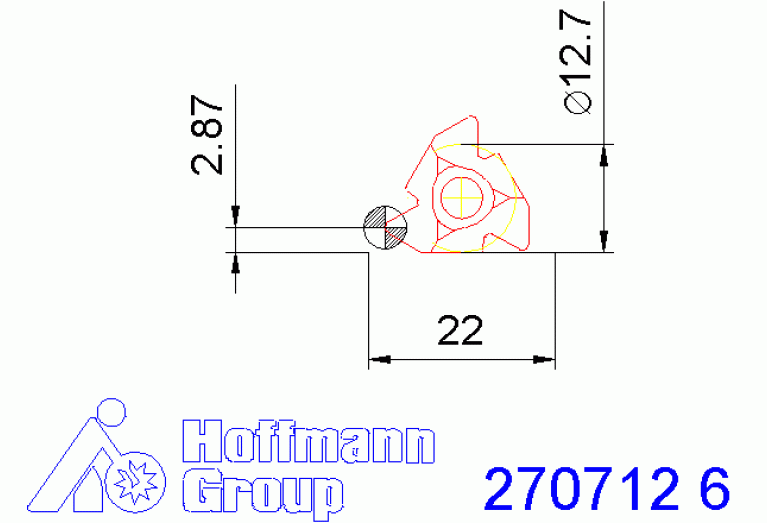

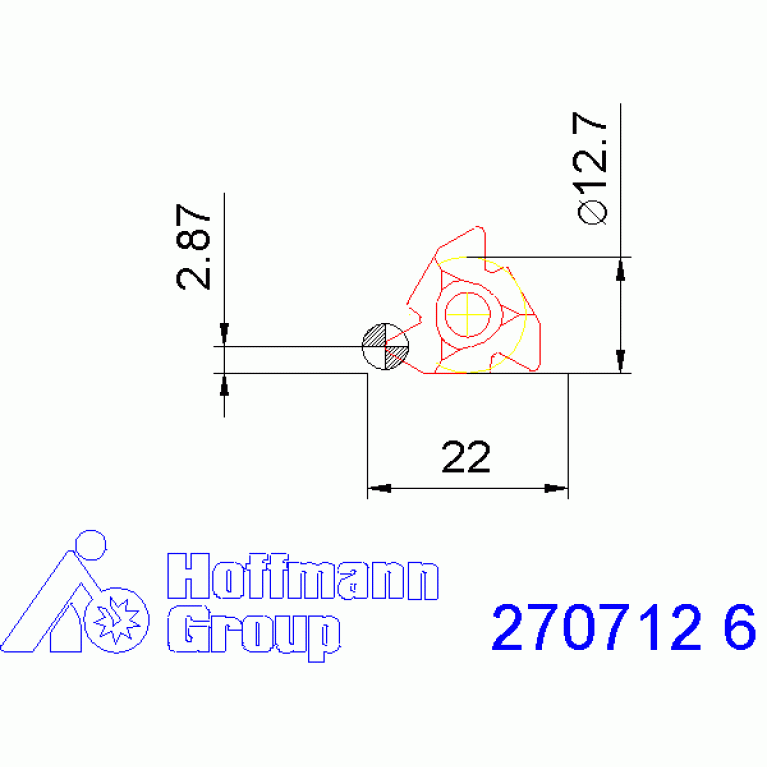

Главная Каталог продукции Toolunited 10 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth 270712 6

270712 6

Артикул: 270712 6

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

VTX

COMPC Company code

HOG - Hoffmann Group

CRE Spot radius

0.86 mm

DIN

HOG-2200ER6.0ISO0476

FamilyProducts

GARANT Full profile insert 60°, external, right-hand

GAN Insert rake angle

10 Degree

GRDMFG Grade manufacturers designation

HB7020

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

INSL Insert length

22 mm

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HOG-2200ER6.0ISO0476

Name Identifying order number

270712 6

NOF Flute count

PDPT Profile depth insert

3.68 mm

PDX Profile distance X

2.7 mm

PDY Profile distance Y

1.8 mm

PNA Profile included angle

60 Degree

S1 Insert thickness total

4.76 mm

STDNO Standard

DIN13

TCE Tipped cutting edge code

THFT Thread form type

TPT Thread profile type

V - Full profile

W1 Insert width

0 mm

Working process

DGA - Thread turning, external

WT Weight of item

0.004 kg
