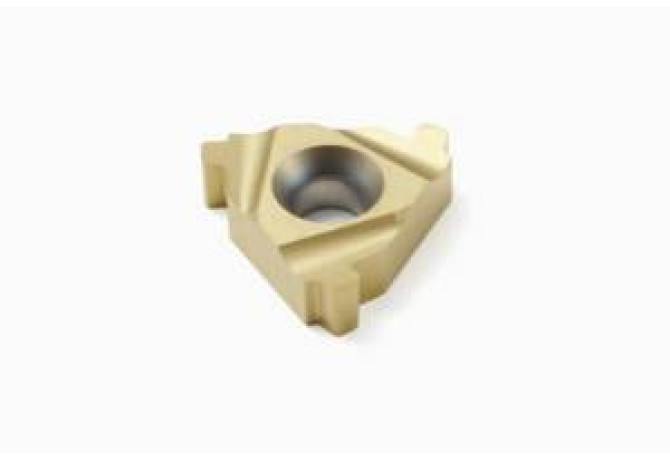

22NR6VAMACE CP500

Артикул: 02574473

В наличии

В корзину

Описание

Характеристики

COMPC Company code

SO - SECO Tools

Delivery state valid from

3/14/2020

DIN

SO-SO 22NR

FamilyProducts

22NR6VAMACE CP500

GRDMFG Grade manufacturers designation

CP500

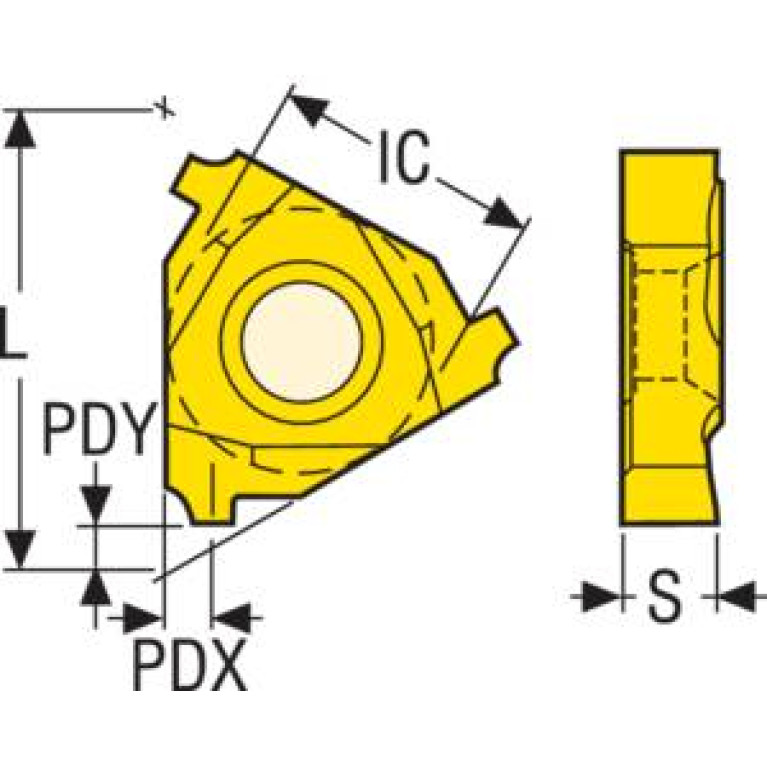

IC Inscribed circle diameter

12.7 mm

ID Technical product number

02574473

IH Insert hand

R - Right

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SO-SO 22NR

Name Identifying order number

22NR6VAMACE CP500

NOF Flute count

PDX Profile distance X

2 mm

PDY Profile distance Y

2.2 mm

PFS Profile form

S Insert thickness

4.71 mm

TPIN Threads per inch minimum

TPIX Threads per inch maximum

TTP Thread type

I - Internal thread

Working process

No working processes available

WT Weight of item

0.01 kg
