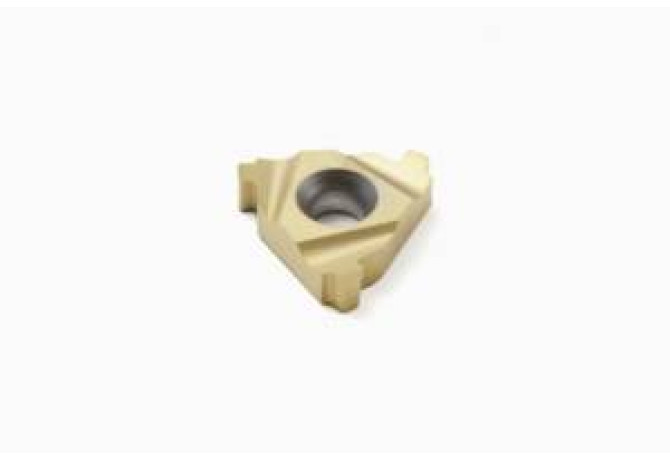

22NR5VAMTOPFE CP500
22NR5VAMTOPFE CP500
Артикул:
02574463
В наличии
Характеристики
COMPC Company code
SO - SECO Tools
Delivery state valid from
3/14/2020
DIN
SO-SO 22NR
FamilyProducts
22NR5VAMTOPFE CP500
GRDMFG Grade manufacturers designation
CP500
IC Inscribed circle diameter
12.7 mm
ID Technical product number
02574463
IH Insert hand
R - Right
Interface codes
J6 /
ISYC Subclass
202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SO-SO 22NR
Name Identifying order number
22NR5VAMTOPFE CP500
NOF Flute count
3

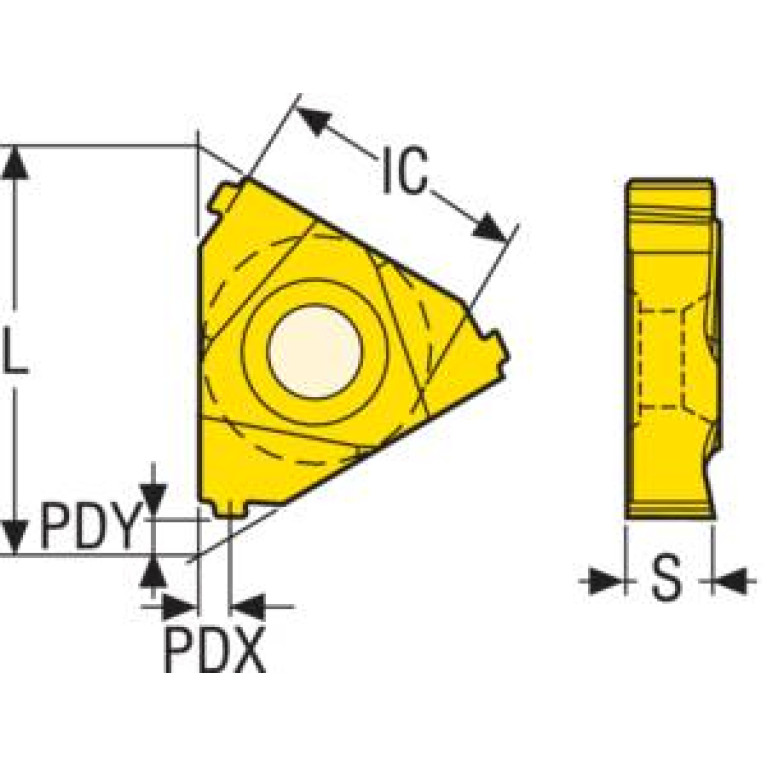

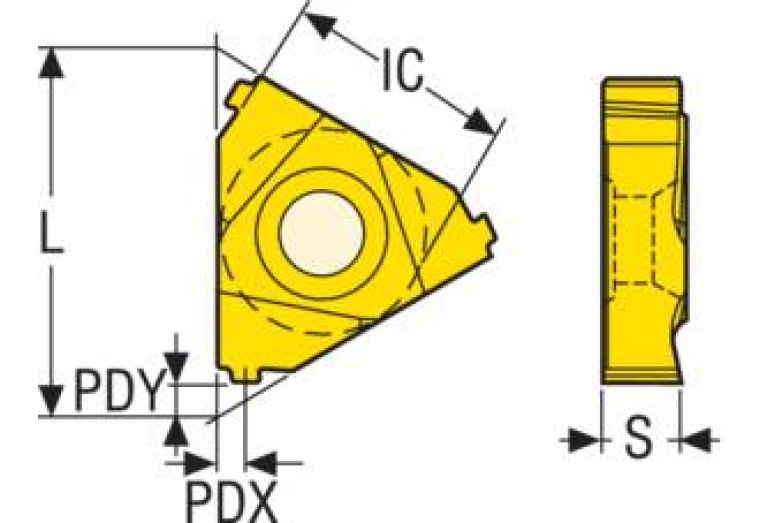

PDX Profile distance X
2.2 mm
PDY Profile distance Y
2.1 mm
PFS Profile form
8
S Insert thickness
4.71 mm
TPIN Threads per inch minimum
5
TPIX Threads per inch maximum
5
TTP Thread type
I - Internal thread
Working process
No working processes available
WT Weight of item
0.01 kg
