Главная Каталог продукции Toolunited 10 202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth 22ER83SB1.5 CP500

22ER83SB1.5 CP500

Артикул: 02555278

В наличии

В корзину

Описание

Характеристики

COMPC Company code

SO - SECO Tools

Delivery state valid from

3/14/2020

DIN

SO-SO 22ER

FamilyProducts

22ER83SB1.5 CP500

GRDMFG Grade manufacturers designation

CP500

IC Inscribed circle diameter

12.7 mm

ID Technical product number

02555278

IH Insert hand

R - Right

Interface codes

J6 /

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SO-SO 22ER

Name Identifying order number

22ER83SB1.5 CP500

NameAnsi Identifying order number inch alternative

TENARIS3SB8TPIEXT. CP500

NOF Flute count

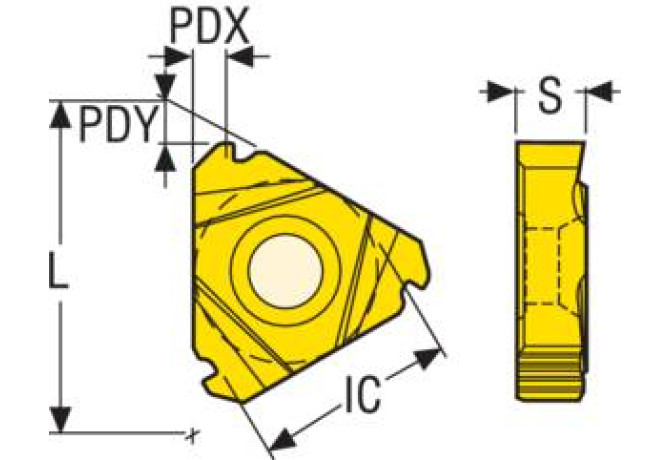

PDX Profile distance X

2.01 mm

PDY Profile distance Y

2.25 mm

PFS Profile form

S Insert thickness

4.71 mm

TPIN Threads per inch minimum

TPIX Threads per inch maximum

TTP Thread type

Working process

No working processes available

WT Weight of item

0.002 kg
