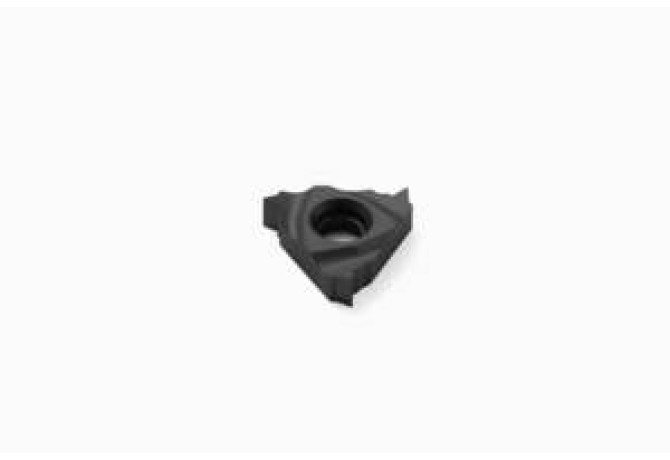

16NR8NPT TM4000
16NR8NPT TM4000
Артикул:
02964967
В наличии
Характеристики
COMPC Company code
SO - SECO Tools
Delivery state valid from
3/14/2020
DIN
SO-SO 16NR
FamilyProducts
16NR8NPT TM4000
GRDMFG Grade manufacturers designation
TM4000

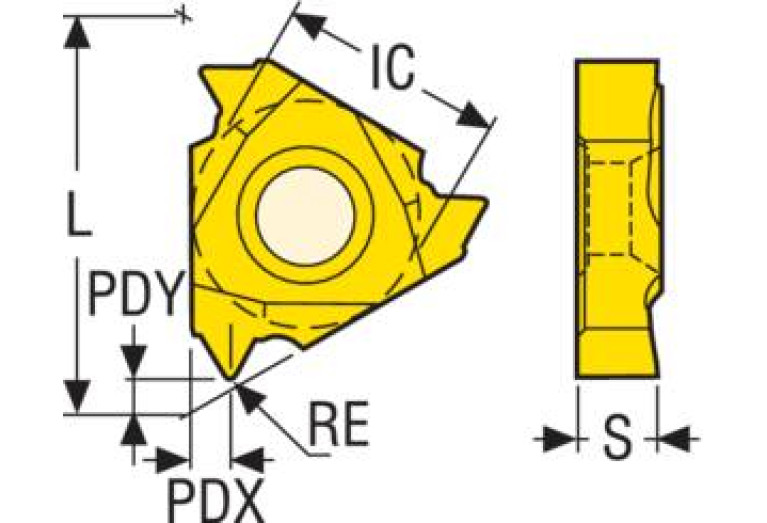

IC Inscribed circle diameter
9.525 mm
ID Technical product number
02964967
IH Insert hand
R - Right
Interface codes
J6 / J61
ISO
SO$$NR16R
ISYC Subclass
202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth
LOC-03 ISO
SO$$NR16R
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SO-SO 16NR
Name Identifying order number
16NR8NPT TM4000
NOF Flute count
3
NT Tooth count
1
PDX Profile distance X
1.6 mm
PDY Profile distance Y
1.1 mm
PFS Profile form
8
PNA Profile included angle
60 Degree
RER Corner radius right hand
0.1 mm
S Insert thickness
3.47 mm
TPIN Threads per inch minimum
8
TPIX Threads per inch maximum
8
TTP Thread type
I - Internal thread
Working process
No working processes available
