Главная Каталог продукции Toolunited 10 202-07 - Insert, multiple cutting edges for grooving and parting MX22-2E200N02-CF5 WSM13S

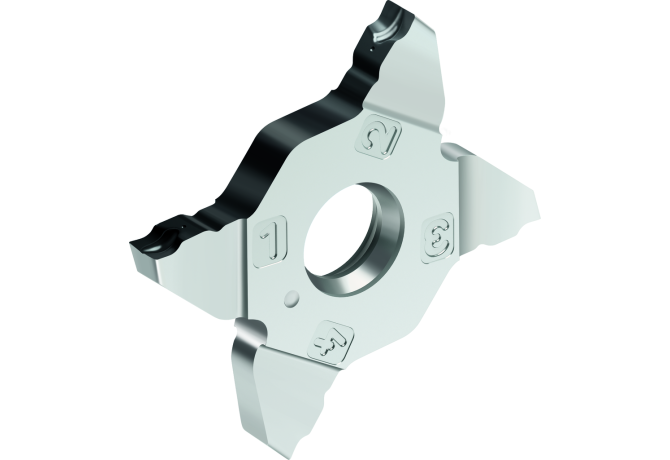

MX22-2E200N02-CF5 WSM13S

Артикул: 7798747

В наличии

В корзину

Описание

Характеристики

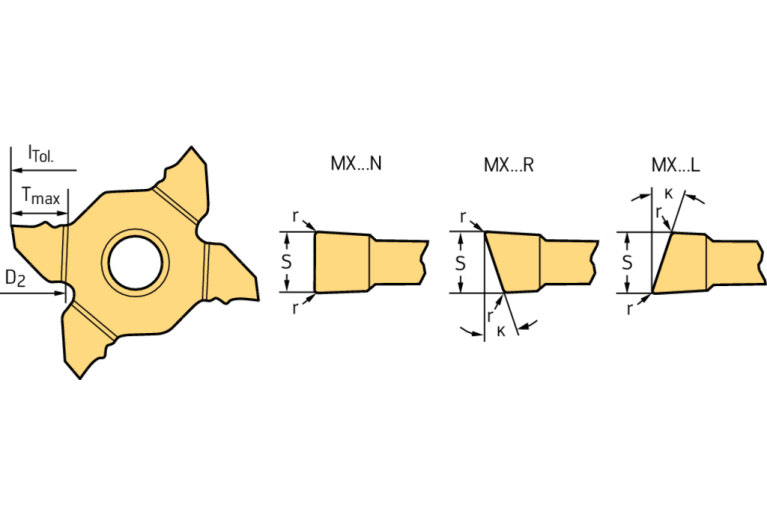

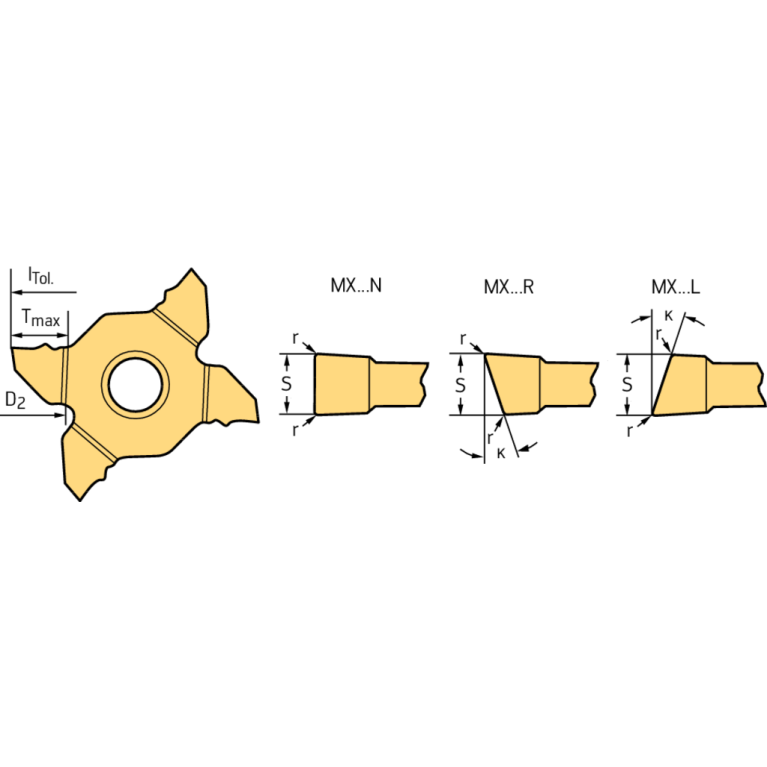

AN Clearance angle major

6 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CF5

COATN Coating

TiAlN+Al2O3+(Al)

COMPC Company code

W - Walter

CW Cutting width

2 mm

D1 Fixing hole diameter

6 mm

Delivery state valid from

12/1/2023

DIN

W-MX2220003$BEX$$

FamilyProducts

Grooving and parting off – cutting inserts MX

GRDMFG Grade manufacturers designation

WSM13S

ID Technical product number

7798747

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

INSL Insert length

22 mm

Interface codes

J6 / J61

ISO

WR$$MX2220003$BEX$$

ISYC Subclass

202-07 - Insert, multiple cutting edges for grooving and parting

LOC-03 ISO

WR$$MX2220003$BEX$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-MX2220003$BEX$$

Name Identifying order number

MX22-2E200N02-CF5 WSM13S

NOF Flute count

PFS Profile form

REL Corner radius left hand

0.2 mm

RER Corner radius right hand

0.2 mm

S Insert thickness

3.35 mm

S1 Insert thickness total

3.35 mm

TCE Tipped cutting edge code

Working process

DEA - Outer diameter grooving,DSS - Face grooving

WT Weight of item

0.011 kg
