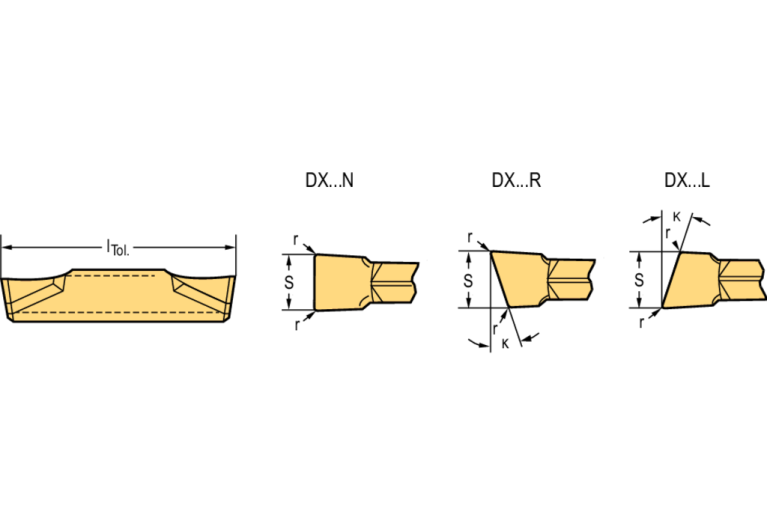

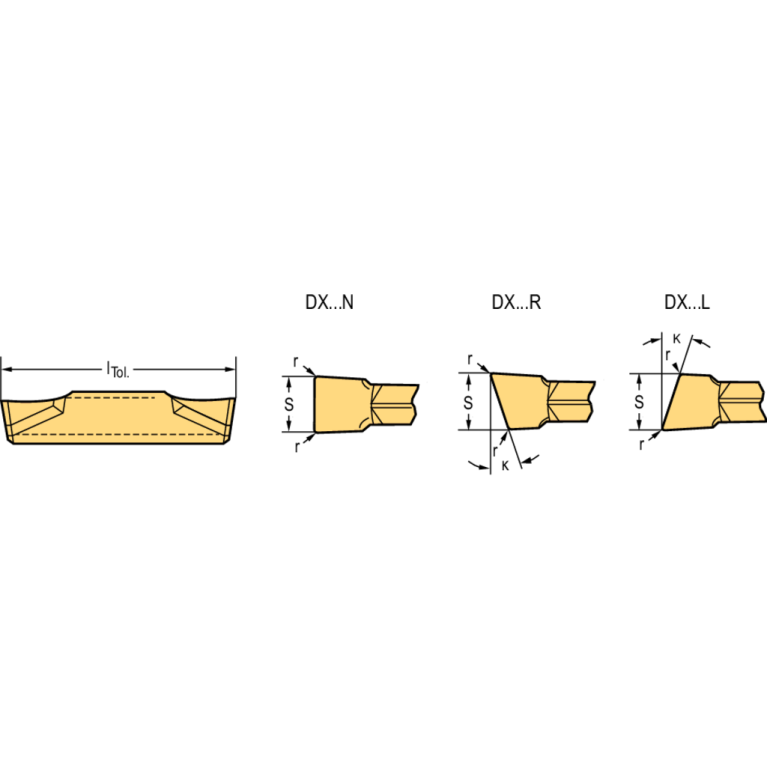

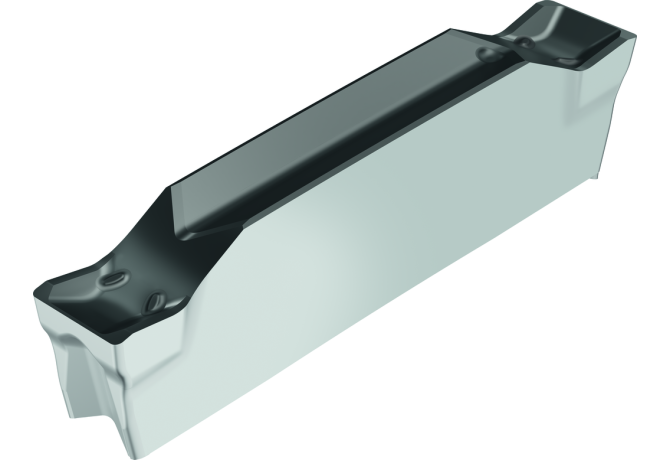

Главная Каталог продукции Toolunited 10 202-03 - Insert, two cutting edges for grooving and parting, self clamping DX18-2E200N02-CE4 WSM33S

DX18-2E200N02-CE4 WSM33S

Артикул: 7795851

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CE4

CECC Cutting edge condition code

E - Rounded

COATN Coating

TiAlN+Al2O3+(Al)

COMPC Company code

W - Walter

CW Cutting width

2 mm

Delivery state valid from

12/1/2023

DIN

W-DX1820007$$EX$$

FamilyProducts

Grooving and parting off – cutting inserts DX

GRDMFG Grade manufacturers designation

WSM33S

ID Technical product number

7795851

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

18 mm

Interface codes

J6 / J61

ISO

WR$$DX1820007$$EX$$

ISYC Subclass

202-03 - Insert, two cutting edges for grooving and parting, self clamping

LOC-03 ISO

WR$$DX1820007$$EX$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-DX1820007$$EX$$

Name Identifying order number

DX18-2E200N02-CE4 WSM33S

NOF Flute count

PFS Profile form

REL Corner radius left hand

0.2 mm

RER Corner radius right hand

0.2 mm

S Insert thickness

3.68 mm

S1 Insert thickness total

4.59 mm

TCE Tipped cutting edge code

W1 Insert width

1.7 mm

Working process

DEA - Outer diameter grooving,DEI - Grooving,DIE - Grooving,DSS - Face grooving

WT Weight of item

0.002 kg
