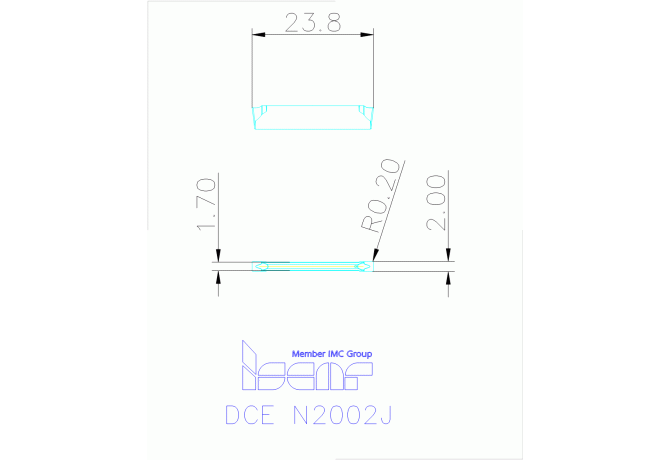

DCE N2002J IC5400
DCE N2002J IC5400
Артикул:
6004866
В наличии
Характеристики
COMPC Company code
IS - Iscar
CW Cutting width
2 mm
FamilyProducts
Double-Sided Parting and Grooving Insert
GRDMFG Grade manufacturers designation
IC5400
ID Technical product number
6004866
IFS Insert mounting style code
7 - Prismatic clamping, concave
IH Insert hand
N - Neutral
INSL Insert length
23.8 mm
Interface codes
/
ISYC Subclass
202-03 - Insert, two cutting edges for grooving and parting, self clamping
Name Identifying order number
DCE N2002J IC5400
NOF Flute count
2
NT Tooth count
1
PDPT Profile depth insert
21 mm
PFS Profile form
1
REL Corner radius left hand
0.2 mm
RER Corner radius right hand
0.2 mm
Working process
DEA - Outer diameter grooving
