0-14107 CP250T

Артикул: 02684246

В наличии

В корзину

Описание

Характеристики

COMPC Company code

SO - SECO Tools

Delivery state valid from

3/14/2020

FamilyProducts

0-14107 CP250T

GRDMFG Grade manufacturers designation

CP250T

ID Technical product number

02684246

IH Insert hand

R - Right

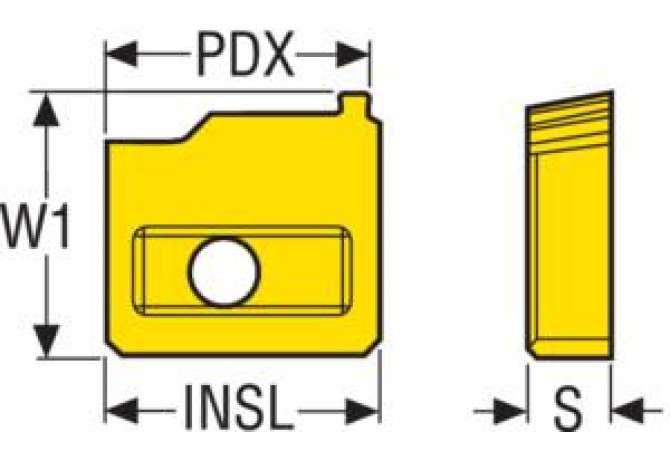

INSL Insert length

15.875 mm

Interface codes

ISYC Subclass

202-02 - Insert, one cutting edge for grooving and parting, self clamping

Name Identifying order number

0-14107 CP250T

NOF Flute count

NT Tooth count

PDX Profile distance X

15.367 mm

PFS Profile form

S Insert thickness

4.76 mm

TPIN Threads per inch minimum

3.5

TPIX Threads per inch maximum

3.5

TTP Thread type

I - Internal thread

Working process

No working processes available

WT Weight of item

0.013 kg
