Главная Каталог продукции Toolunited 10 202-01 - Insert, one cutting edge for grooving, screw mounting UX-19E1900N15-GD2 WKP23S

UX-19E1900N15-GD2 WKP23S

Артикул: 7789318

В наличии

В корзину

Описание

Характеристики

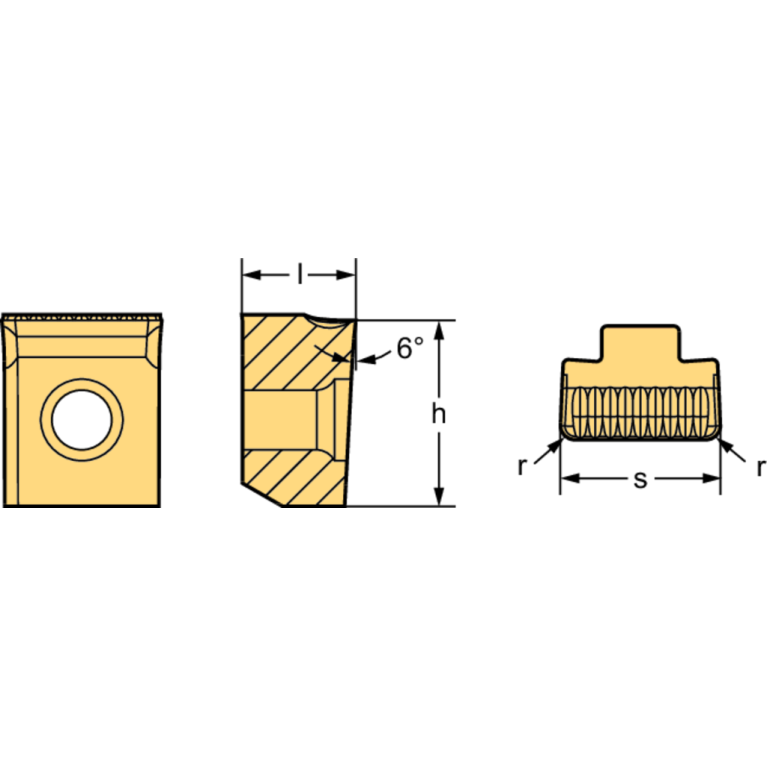

AN Clearance angle major

6 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

GD2

COATN Coating

TiCN+Al2O3+(TiCN)

COMPC Company code

W - Walter

CW Cutting width

19 mm

Delivery state valid from

12/1/2023

DIN

W-UX0019153$APA15

FamilyProducts

Grooving and parting off – cutting inserts UX

GRDMFG Grade manufacturers designation

WKP23S

ID Technical product number

7789318

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

INSL Insert length

13.55 mm

Interface codes

J6 / J61

ISO

WR$$UX0019153$APA15

ISYC Subclass

202-01 - Insert, one cutting edge for grooving, screw mounting

LOC-03 ISO

WR$$UX0019153$APA15

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-UX0019153$APA15

Name Identifying order number

UX-19E1900N15-GD2 WKP23S

NOF Flute count

PFS Profile form

S Insert thickness

18 mm

S1 Insert thickness total

18 mm

TCE Tipped cutting edge code

Working process

DEA - Outer diameter grooving,DEI - Grooving,DIE - Grooving,DSS - Face grooving

WT Weight of item

0.046 kg
