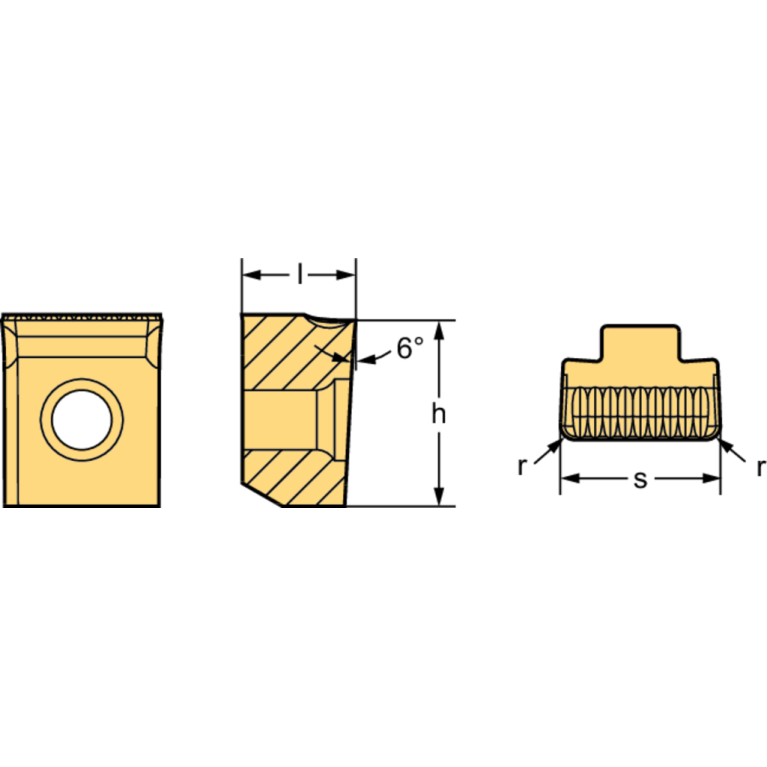

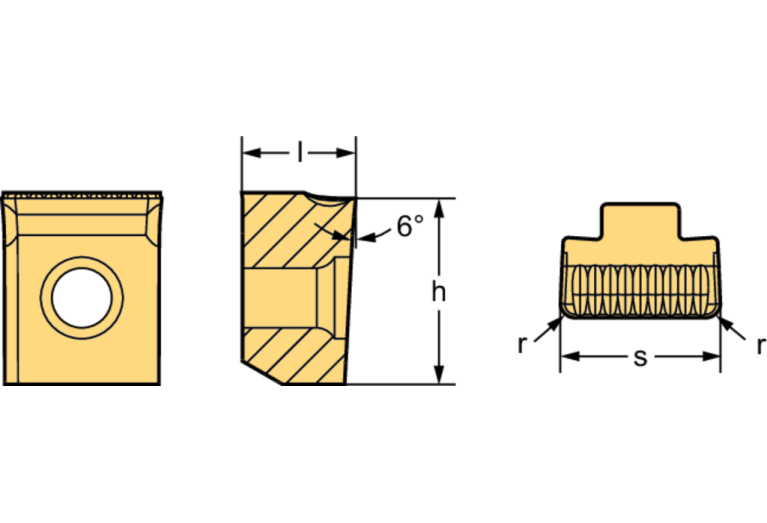

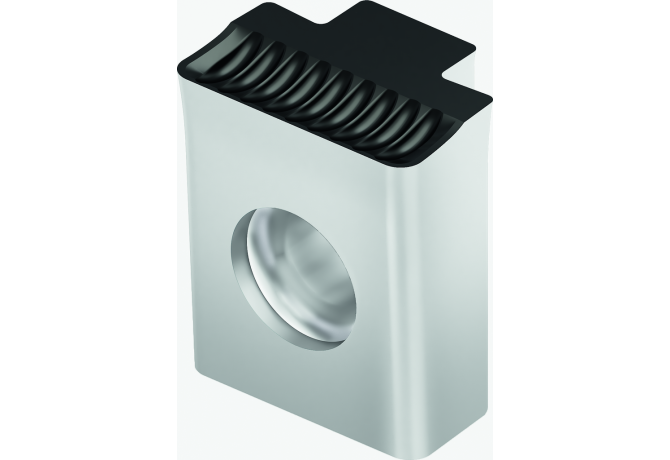

Главная Каталог продукции Toolunited 10 202-01 - Insert, one cutting edge for grooving, screw mounting UX-12E1200N10-GD2 WKP33S

UX-12E1200N10-GD2 WKP33S

Артикул: 7789316

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

6 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

GD2

COATN Coating

TiCN+Al2O3+(TiCN)

COMPC Company code

W - Walter

CW Cutting width

12 mm

Delivery state valid from

12/1/2023

DIN

W-UX0012103$APA10

FamilyProducts

Grooving and parting off – cutting inserts UX

GRDMFG Grade manufacturers designation

WKP33S

ID Technical product number

7789316

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

INSL Insert length

8.55 mm

Interface codes

J6 / J61

ISO

WR$$UX0012103$APA10

ISYC Subclass

202-01 - Insert, one cutting edge for grooving, screw mounting

LOC-03 ISO

WR$$UX0012103$APA10

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-UX0012103$APA10

Name Identifying order number

UX-12E1200N10-GD2 WKP33S

NOF Flute count

PFS Profile form

S Insert thickness

14 mm

S1 Insert thickness total

14 mm

TCE Tipped cutting edge code

Working process

DEA - Outer diameter grooving,DEI - Grooving,DIE - Grooving,DSS - Face grooving

WT Weight of item

0.013 kg
