Главная Каталог продукции Toolunited 10 201-10 - Round insert RPLX1204M0N-HR1 IN2505

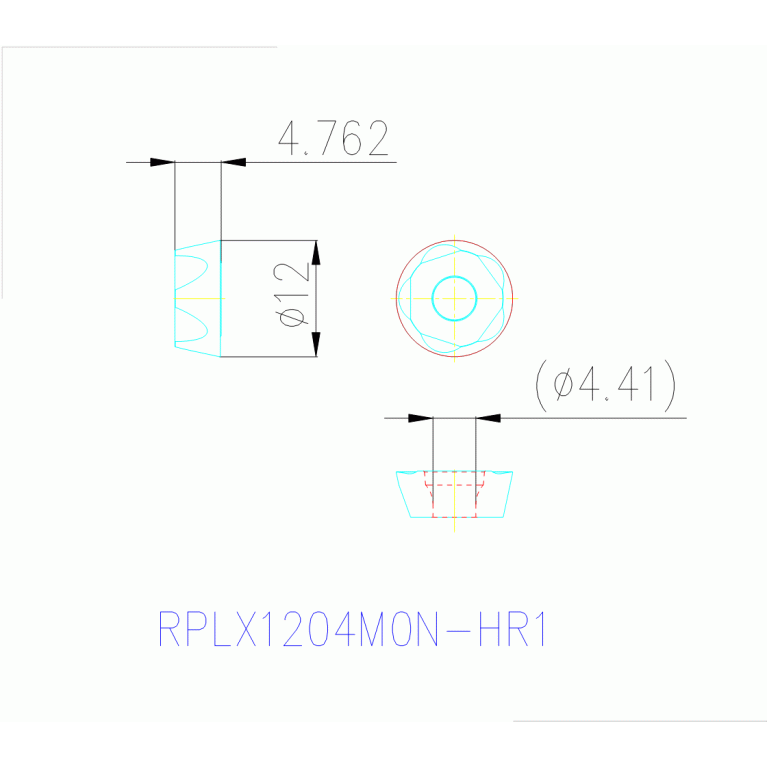

RPLX1204M0N-HR1 IN2505

Артикул: 3058906

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

12 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating

TiAIN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

LL - Stock limited

DIN

RP1204 7N

FamilyProducts

insert, min. five-edged, positive, geometry

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

12 mm

ID Technical product number

3058906

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RP1204 7N

M M-dimension

12 mm

Name Identifying order number

RPLX1204M0N-HR1 IN2505

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

RPLX1204M0

STDDESAnsi Standard designation ANSI

RPLX43V

TCINS Tolerance class insert

Working process

No working processes available
