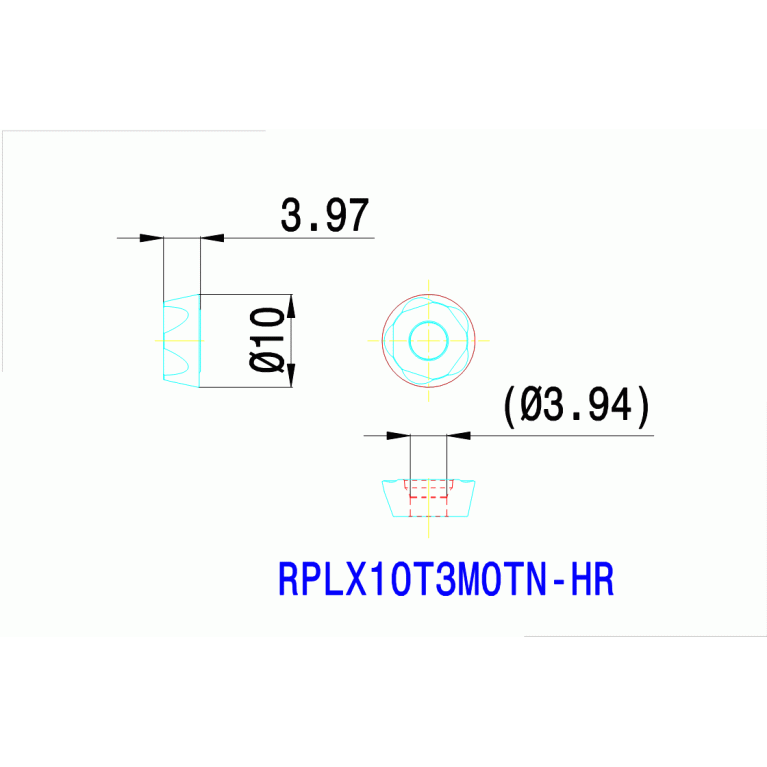

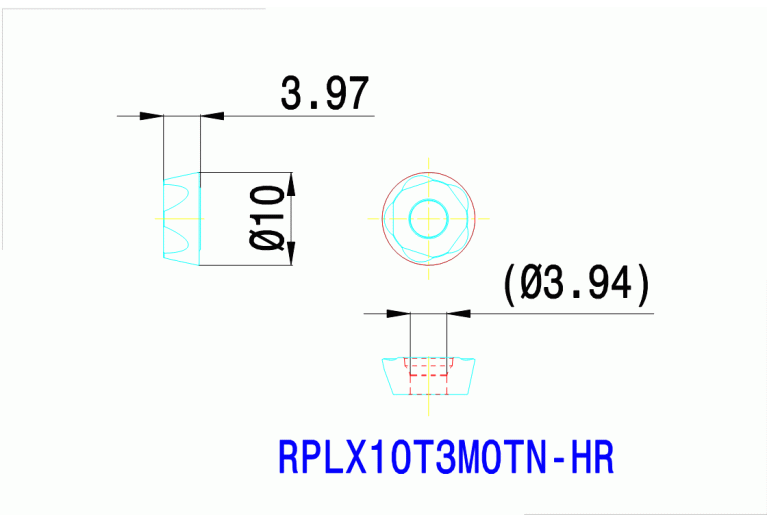

RPLX10T3M0TN-HR IN7035

Артикул: 5896676

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

12 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

3.94 mm

Delivery state

LL - Stock limited

DIN

RP10T3 7N

FamilyProducts

insert, min. five-edged, positive geometry, neg. K-land

GRD2ND Standard designation of the grade 2nd application

M20-M35

GRD3RD Standard designation of the grade 3rd application

S15-S30

GRDMFG Grade manufacturers designation

IN7035

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

10 mm

ID Technical product number

5896676

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RP10T3 7N

M M-dimension

10 mm

Name Identifying order number

RPLX10T3M0TN-HR IN7035

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

RPLX10T3M0

TCINS Tolerance class insert

Working process

No working processes available
