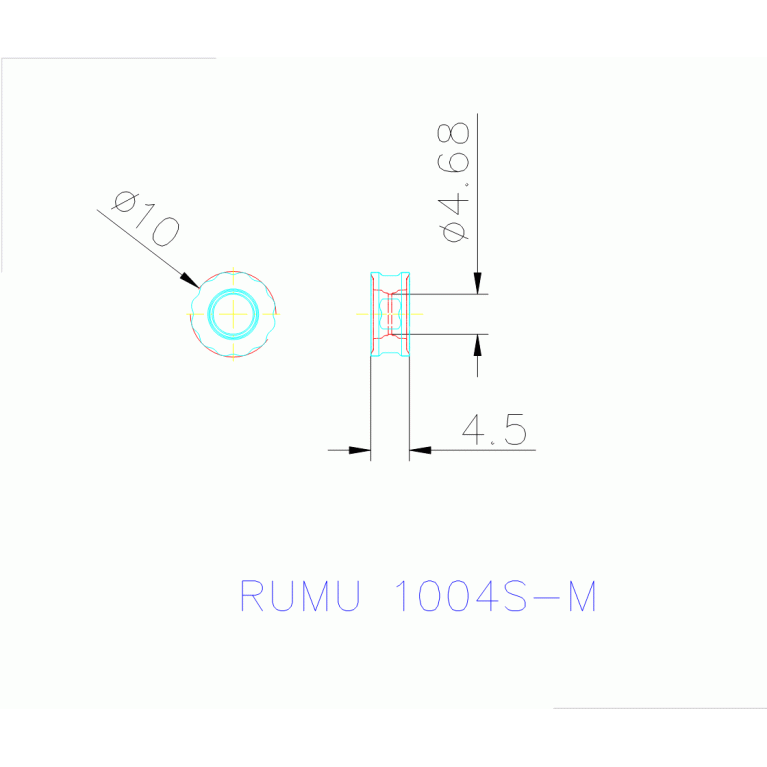

RNLU1004MON-S IN2505

Артикул: 5616419

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating

TiAIN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

LL - Stock limited

DIN

RN1004 5N

FamilyProducts

insert,

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

10 mm

ID Technical product number

5616419

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RN1004 5N

M M-dimension

10 mm

Name Identifying order number

RNLU1004MON-S IN2505

S Insert thickness

4.5 mm

S1 Insert thickness total

4.5 mm

STDDES Standard designation

RNLU1004M0

TCINS Tolerance class insert

Working process

No working processes available
