Главная Каталог продукции Toolunited 10 201-10 - Round insert RHKW1605M0TN IN4030

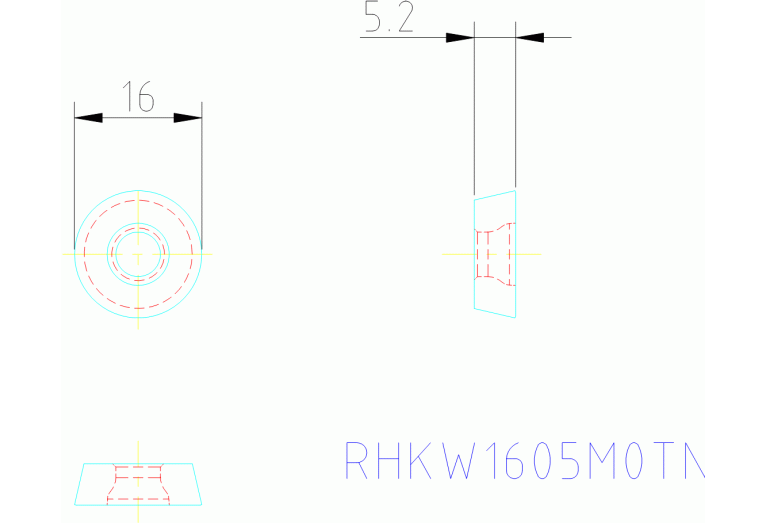

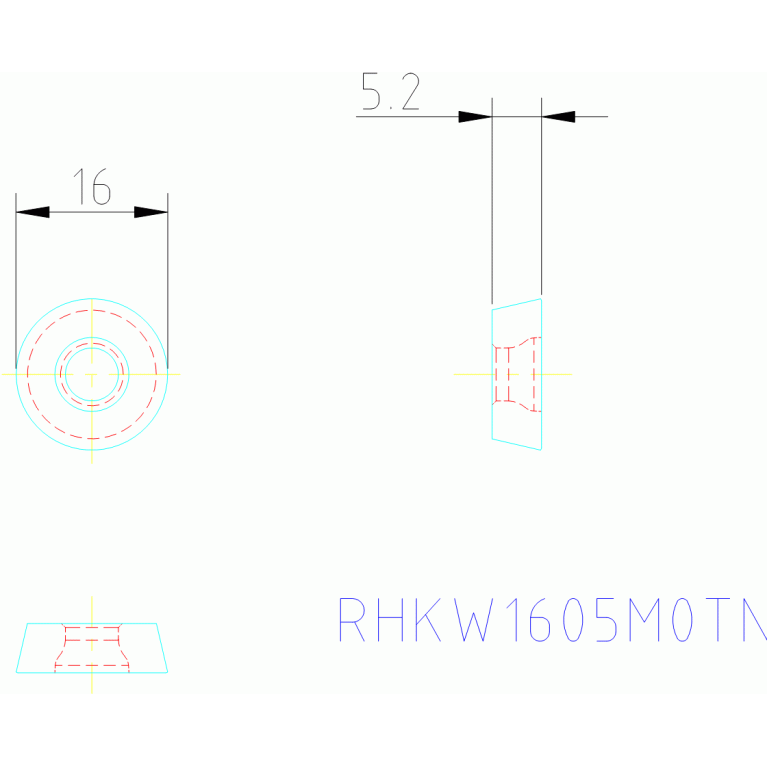

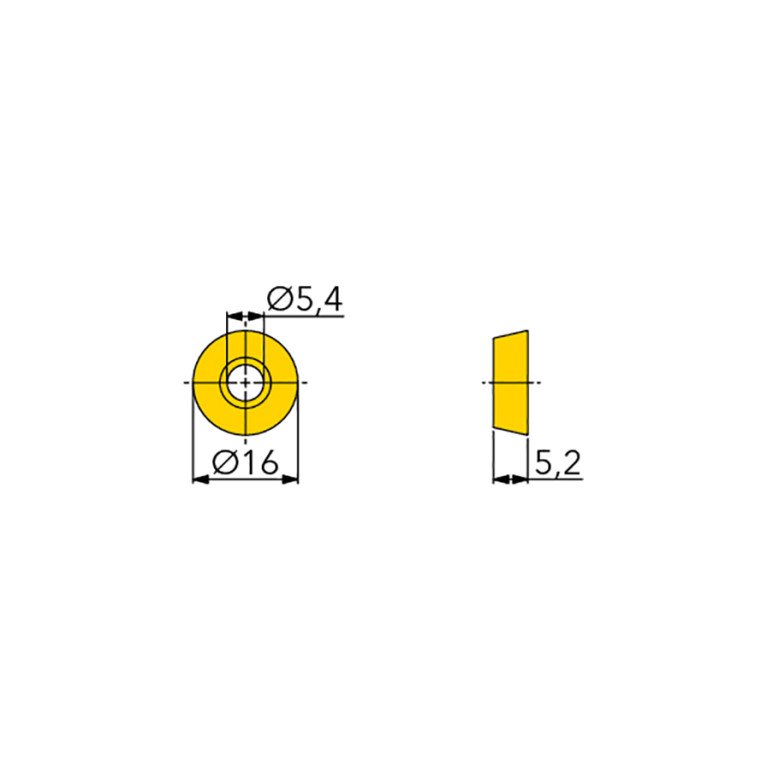

RHKW1605M0TN IN4030

Артикул: 5865805

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

13 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiAlN+AlCrO

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.4 mm

Delivery state

LL - Stock limited

DIN

RH1605 3N

FamilyProducts

insert, min. four-edged, neutral geometry, with K-land for roughing

GRD2ND Standard designation of the grade 2nd application

M15-M30

GRD3RD Standard designation of the grade 3rd application

K20-K30

GRDMFG Grade manufacturers designation

IN4030

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

16 mm

ID Technical product number

5865805

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RH1605 3N

M M-dimension

16 mm

Name Identifying order number

RHKW1605M0TN IN4030

S Insert thickness

5.2 mm

S1 Insert thickness total

5.2 mm

STDDES Standard designation

RHKW1605M0

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available
