Главная Каталог продукции Toolunited 10 201-10 - Round insert RHKT2006M0TN-PH2 IN4040

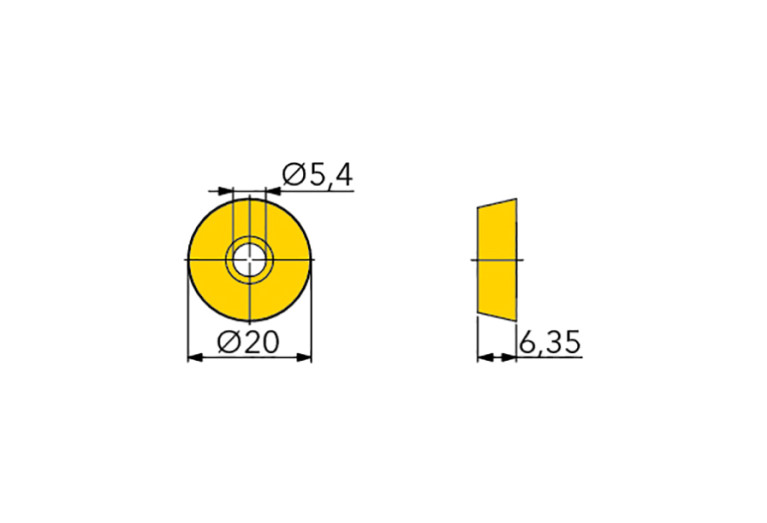

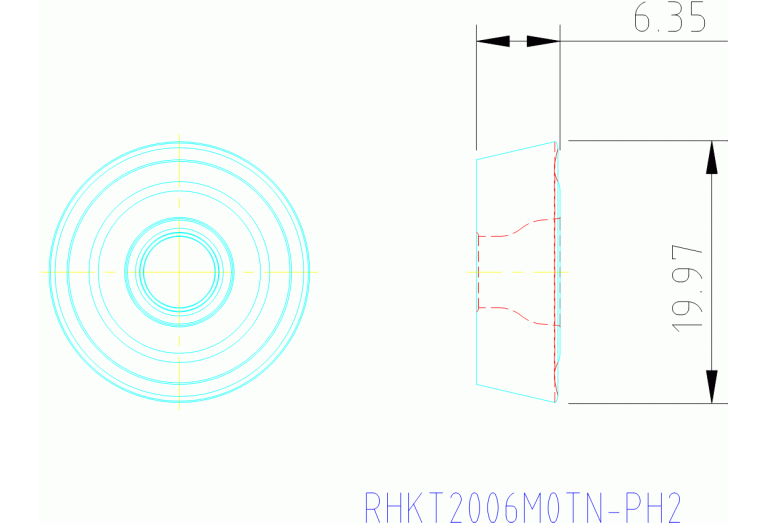

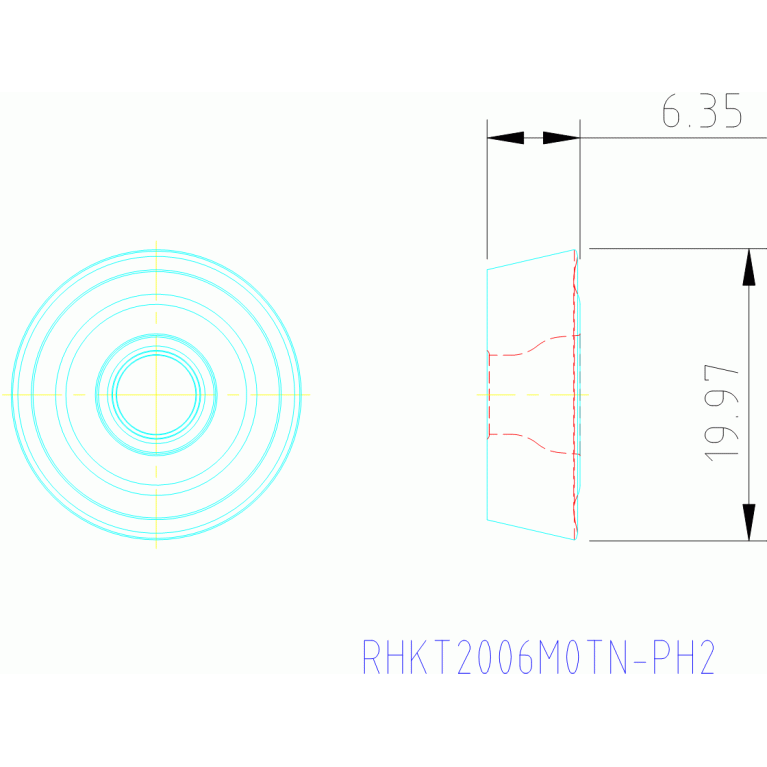

RHKT2006M0TN-PH2 IN4040

Артикул: 5865996

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

13 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating

TiAlN+AlCrO

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.4 mm

Delivery state

LL - Stock limited

DIN

RH2006 3N

FamilyProducts

insert, min. four-edged, positive roughing geometry, neg. K-land

GRDMFG Grade manufacturers designation

IN4040

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

20 mm

ID Technical product number

5865996

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RH2006 3N

M M-dimension

20 mm

Name Identifying order number

RHKT2006M0TN-PH2 IN4040

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

RHKT2006M0

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available
