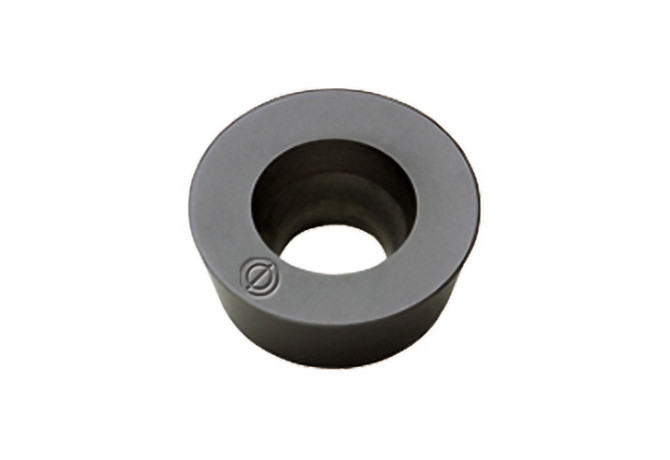

RHHW1204M0TN IN2006

Артикул: 5811853

В наличии

В корзину

Описание

Характеристики

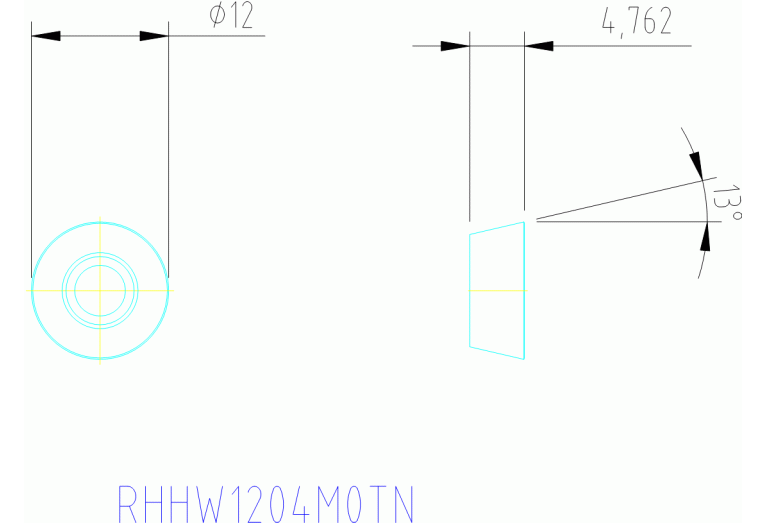

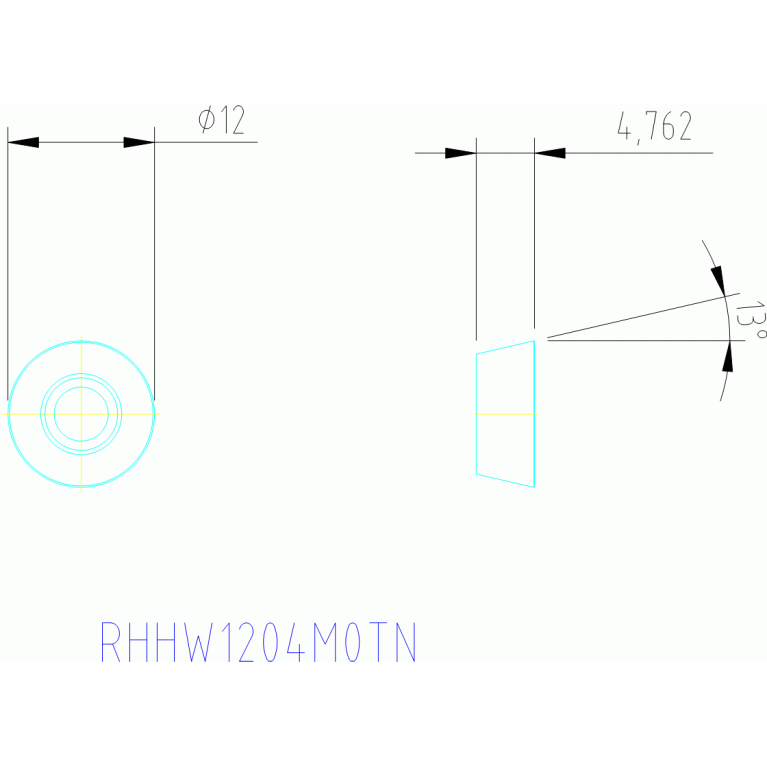

AN Clearance angle major

13 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

LH - Stocked

DIN

RH1204 3N

FamilyProducts

insert, min. four-edged, neutral geometry with K-land

GRDMFG Grade manufacturers designation

IN2006

GRDPRIO Standard designation of the grade main application

P05-P20

IC Inscribed circle diameter

12 mm

ID Technical product number

5811853

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RH1204 3N

M M-dimension

12 mm

Name Identifying order number

RHHW1204M0TN IN2006

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

RHHW1204M0

STDDESAnsi Standard designation ANSI

RHHW43V

TCINS Tolerance class insert

Working process

No working processes available
